FP-04-02 by Kurt Hydraulics | Jump Size | Female NPSM | for 1/4" Hose ID

FP-04-02 by Kurt Hydraulics | Jump Size | Female NPSM | for 1/4" Hose ID

Save $3.89 Save $3.89
$9.72
$9.72 - $9.72
$9.72
$5.83
$5.83 - $5.83
$5.83

by Kurt Hydraulics
FP - NPSM Female Pipe Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FP-04-02 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/8in Female NPSM
Special Properties: Jump Size

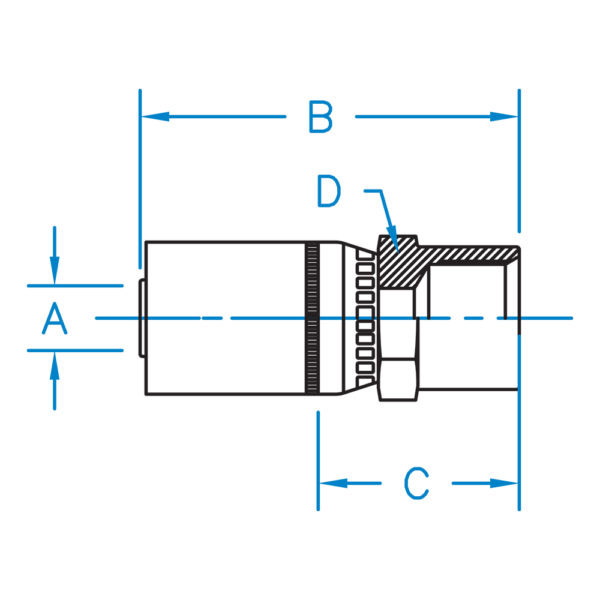

Part Number A B C D Hose ID
(In)		 Thread
FP-04-02 0.250 2.340 1.085 5/8 1/4" 1/8-27
FP-04-04 0.250 2.344 1.089 11/16 1/4" 1/4-18
FP-04-06 0.250 2.438 1.183 7/8 1/4" 3/8-18
FP-06-04 0.375 2.699 1.199 11/16 3/8" 1/4-18
FP-06-06 0.375 2.699 1.199 7/8 3/8" 3/8-18
FP-06-08 0.375 2.855 1.355 1.000 3/8" 1/2-14
FP-08-08 0.500 2.933 1.438 1.000 1/2" 1/2-14
FP-12-08 0.750 N/A N/A N/A 3/4" 1/2-14
FP-12-12 0.750 3.138 1.545 1-1/4 3/4" 3/4-14
FP-16-16 1.000 3.485 1.751 1-1/2 1.000" 1-11-1/2

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
