FP-04-06 by Kurt Hydraulics | Jump Size | Female NPSM | for 1/4" Hose ID

Name: FP-04-06 by Kurt Hydraulics | Jump Size | Female NPSM | for 1/4" Hose ID
Brand: Kurt Hydraulics
SKU: FP-04-06 Kurt
Price: 14.43 USD
Availability: InStock

Save $9.62

$24.05

$24.05 - $24.05

$24.05

$14.43

$14.43 - $14.43

$14.43

by Kurt Hydraulics
FP - NPSM Female Pipe Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FP-04-06 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 3/8in Female NPSM
Special Properties:	Jump Size

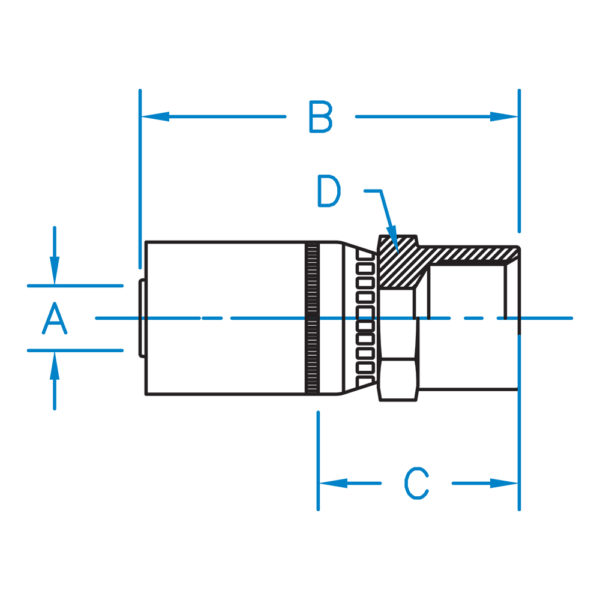

Part Number	A	B	C	D	Hose ID (In)	Thread
FP-04-02	0.250	2.340	1.085	5/8	1/4"	1/8-27
FP-04-04	0.250	2.344	1.089	11/16	1/4"	1/4-18
FP-04-06	0.250	2.438	1.183	7/8	1/4"	3/8-18
FP-06-04	0.375	2.699	1.199	11/16	3/8"	1/4-18
FP-06-06	0.375	2.699	1.199	7/8	3/8"	3/8-18
FP-06-08	0.375	2.855	1.355	1.000	3/8"	1/2-14
FP-08-08	0.500	2.933	1.438	1.000	1/2"	1/2-14
FP-12-08	0.750	N/A	N/A	N/A	3/4"	1/2-14
FP-12-12	0.750	3.138	1.545	1-1/4	3/4"	3/4-14
FP-16-16	1.000	3.485	1.751	1-1/2	1.000"	1-11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
