FP-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female NPTF | Carbon Steel

Name: FP-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female NPTF | Carbon Steel
Brand: Kurt Hydraulics
SKU: FP-04-04-K2 Kurt
Price: 9.65 USD
Availability: InStock

Save $6.43

$16.08

$16.08 - $16.08

$16.08

$9.65

$9.65 - $9.65

$9.65

Kurt Hydraulics
FP - NPTF Female Pipe Rigid

Specifications for Variant SKU: FP-04-04-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female NPTF
Material(s):	Carbon Steel

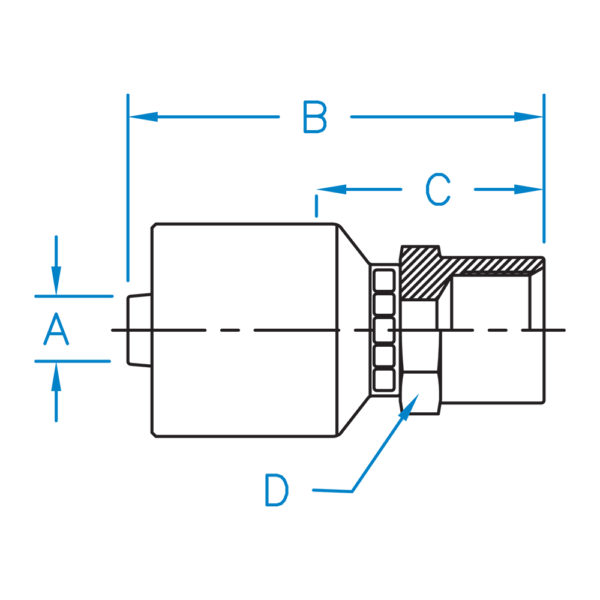

Part Number	Hose I.D. (in.)	B	C	D	Thread
FP-04-02-K2	1/4"	1.98"	0.92"	5/8"	1/8 – 27
FP-04-04-K2	1/4"	2.06"	1.00"	11/16"	1/4 – 18
FP-04-06-K2	1/4"	2.16"	1.10"	7/8"	3/8 – 18
FP-06-04-K2	3/8"	2.49"	1.12"	11/16"	1/4 – 18
FP-06-06-K2	3/8"	2.34"	1.11"	7/8"	3/8 – 18
FP-06-08-K2	3/8"	2.64"	1.27"	1"	1/2 – 14
FP-08-06-K2	1/2"	2.51"	1.21"	7/8"	3/8 – 18
FP-08-08-K2	1/2"	2.67"	1.33"	1"	1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
