FP-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Female NPTF | Carbon Steel

FP-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Female NPTF | Carbon Steel

Save $15.17 Save $15.17
$37.92
$37.92 - $37.92
$37.92
$22.75
$22.75 - $22.75
$22.75

Kurt Hydraulics
FP - NPTF Female Pipe Rigid
Specifications for Variant SKU: FP-04-06-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 3/8in Female NPTF
Material(s): Carbon Steel

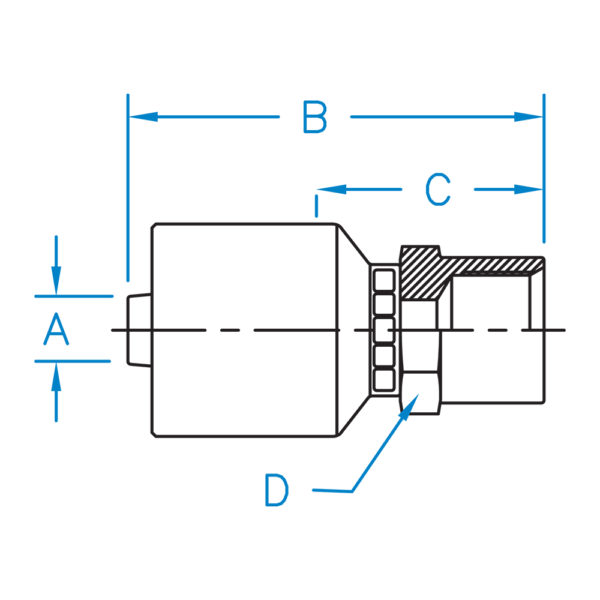

Part Number Hose I.D. (in.) B C D Thread
FP-04-02-K2 1/4" 1.98" 0.92" 5/8" 1/8 – 27
FP-04-04-K2 1/4" 2.06" 1.00" 11/16" 1/4 – 18
FP-04-06-K2 1/4" 2.16" 1.10" 7/8" 3/8 – 18
FP-06-04-K2 3/8" 2.49" 1.12" 11/16" 1/4 – 18
FP-06-06-K2 3/8" 2.34" 1.11" 7/8" 3/8 – 18
FP-06-08-K2 3/8" 2.64" 1.27" 1" 1/2 – 14
FP-08-06-K2 1/2" 2.51" 1.21" 7/8" 3/8 – 18
FP-08-08-K2 1/2" 2.67" 1.33" 1" 1/2 – 14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
