FPX-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female NPSM Swivel | Carbon Steel

FPX-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female NPSM Swivel | Carbon Steel

Save $7.59 Save $7.59
$18.98
$18.98 - $18.98
$18.98
$11.39
$11.39 - $11.39
$11.39

Kurt Hydraulics
FPX - NPSM Female Pipe Swivel
Specifications for Variant SKU: FPX-04-04-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female NPSM
Material(s): Carbon Steel

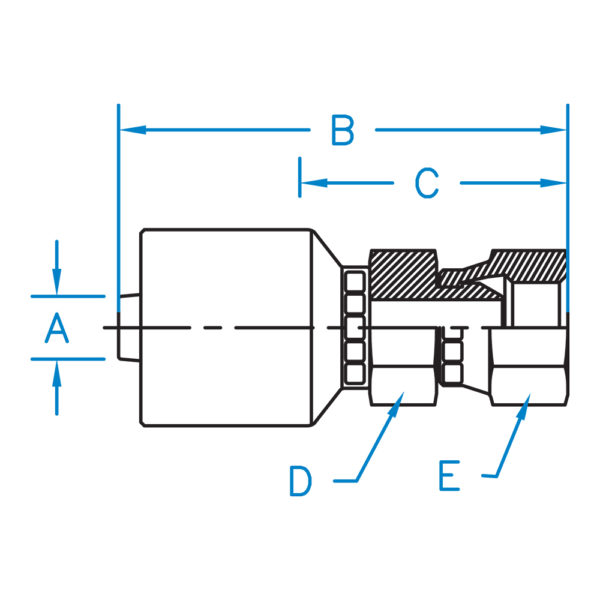

Part Number Hose I.D. (in.) B C D E Thread
FPX-04-02-K2 1/4" 2.01" 0.95" 9/16" 9/16" 1/8 – 27
FPX-04-04-K2 1/4" 1.90" 1.00" 9/16" 3/4" 1/4 – 18
FPX-04-06-K2 1/4" 2.08" 1.02" 5/8" 7/8" 3/8 – 18
FPX-06-04-K2 3/8" 2.51" 1.14" 11/16" 3/4" 1/4 – 18
FPX-06-06-K2 3/8" 2.06" 1.00" 11/16" 7/8" 3/8 – 18
FPX-08-08 3/8" 2.16" 1.10" 7/8" 1" 1/2 – 14
FPX-08-12-K2 1/2" 2.93" 1.59" 1" 1-1/4" 3/4 – 14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
