FPX-08-06-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 3/8" Female NPSM Swivel | Carbon Steel

Name: FPX-08-06-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 3/8" Female NPSM Swivel | Carbon Steel
Brand: Kurt Hydraulics
SKU: FPX-08-08-K2 Kurt
Price: 17.8 USD
Availability: InStock

Save $11.87

$29.67

$29.67 - $29.67

$29.67

$17.80

$17.80 - $17.80

$17.80

Kurt Hydraulics
FPX - NPSM Female Pipe Swivel

Specifications for Variant SKU: FPX-08-08-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 3/8in Female NPSM
Material(s):	Carbon Steel

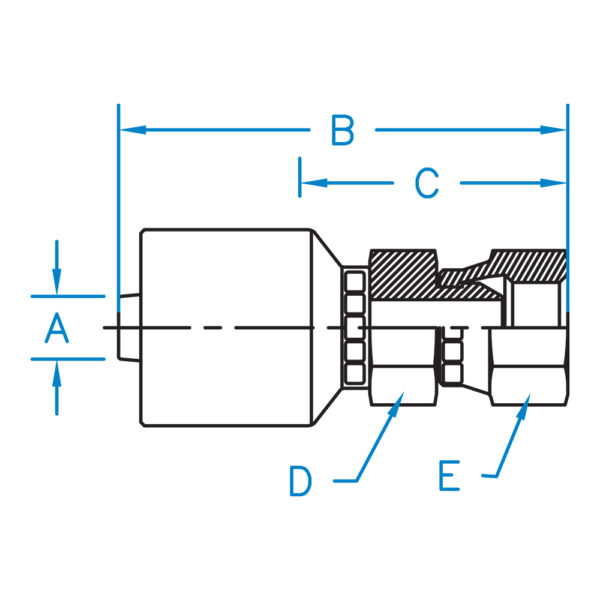

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
FPX-04-02-K2	1/4"	2.01"	0.95"	9/16"	9/16"	1/8 – 27
FPX-04-04-K2	1/4"	1.90"	1.00"	9/16"	3/4"	1/4 – 18
FPX-04-06-K2	1/4"	2.08"	1.02"	5/8"	7/8"	3/8 – 18
FPX-06-04-K2	3/8"	2.51"	1.14"	11/16"	3/4"	1/4 – 18
FPX-06-06-K2	3/8"	2.06"	1.00"	11/16"	7/8"	3/8 – 18
FPX-08-08	3/8"	2.16"	1.10"	7/8"	1"	1/2 – 14
FPX-08-12-K2	1/2"	2.93"	1.59"	1"	1-1/4"	3/4 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
