FW-08-08 by Kurt Hydraulics | Female Weld Fitting for 1/2" Hose ID

FW-08-08 by Kurt Hydraulics | Female Weld Fitting for 1/2" Hose ID

Save $2.58 Save $2.58
$6.45
$6.45 - $6.45
$6.45
$3.87
$3.87 - $3.87
$3.87

by Kurt Hydraulics
FW - Female Weld Fitting Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FW-08-08 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Weld End

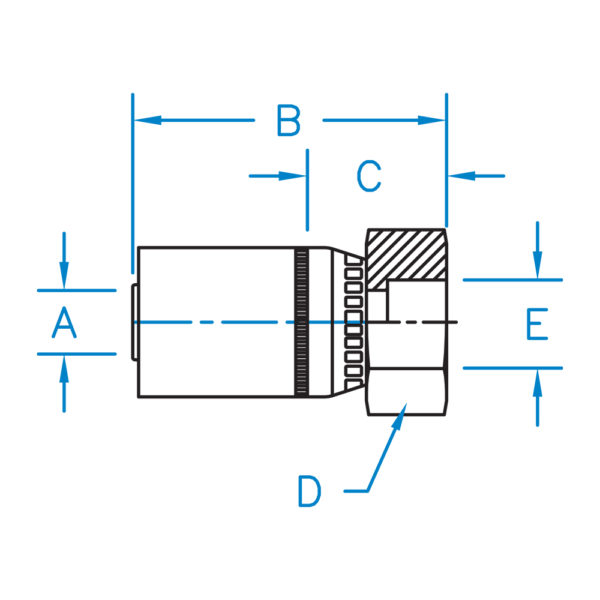

Part Number A B C D E Hose ID
(In)		 Thread
FW-03-04 0.187 1.680 0.45 9/16 1/4 3/16" N/A
FW-04-04 0.250 1.880 0.625 5/8 1/4 1/4" N/A
FW-04-05 0.250 1.880 0.625 5/8 5/16 1/4" N/A
FW-04-06 0.250 1.880 0.625 5/8 3/8 1/4" N/A
FW-06-06 0.375 2.136 0.641 11/16 3/8 3/8" N/A
FW-06-08 0.375 2.141 0.641 3/4 1/2 3/8" N/A
FW-08-08 0.500 2.214 0.714 7/8 1/2 1/2" N/A
FW-08-10 0.500 2.214 0.714 7/8 5/8 1/2" N/A
FW-12-12 0.750 2.448 0.855 1-1/8 3/4 3/4" N/A
FW-16-16 1.000 2.605 0.871 1-3/8 1.000 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
