FW-16-16 by Kurt Hydraulics | Female Weld Fitting for 1" Hose ID

Name: FW-16-16 by Kurt Hydraulics | Female Weld Fitting for 1" Hose ID
Brand: Kurt Hydraulics
SKU: FW-16-16 Kurt
Price: 14.32 USD
Availability: InStock

Save $9.55

$23.87

$23.87 - $23.87

$23.87

$14.32

$14.32 - $14.32

$14.32

by Kurt Hydraulics
FW - Female Weld Fitting Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FW-16-16 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1in Weld End

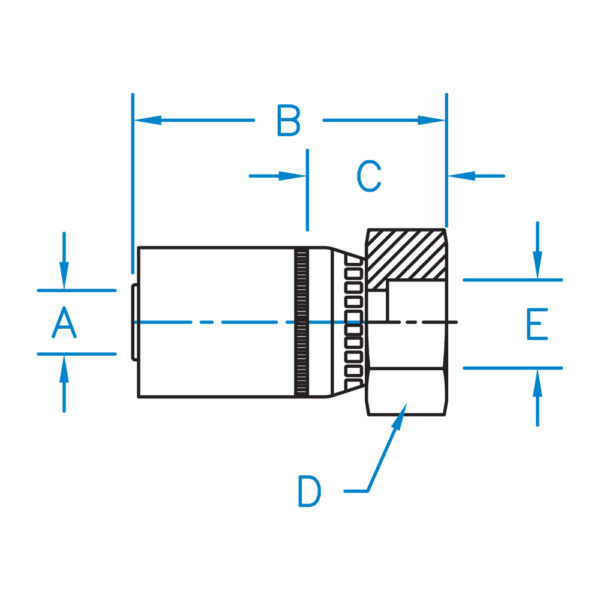

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FW-03-04	0.187	1.680	0.45	9/16	1/4	3/16"	N/A
FW-04-04	0.250	1.880	0.625	5/8	1/4	1/4"	N/A
FW-04-05	0.250	1.880	0.625	5/8	5/16	1/4"	N/A
FW-04-06	0.250	1.880	0.625	5/8	3/8	1/4"	N/A
FW-06-06	0.375	2.136	0.641	11/16	3/8	3/8"	N/A
FW-06-08	0.375	2.141	0.641	3/4	1/2	3/8"	N/A
FW-08-08	0.500	2.214	0.714	7/8	1/2	1/2"	N/A
FW-08-10	0.500	2.214	0.714	7/8	5/8	1/2"	N/A
FW-12-12	0.750	2.448	0.855	1-1/8	3/4	3/4"	N/A
FW-16-16	1.000	2.605	0.871	1-3/8	1.000	1.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
