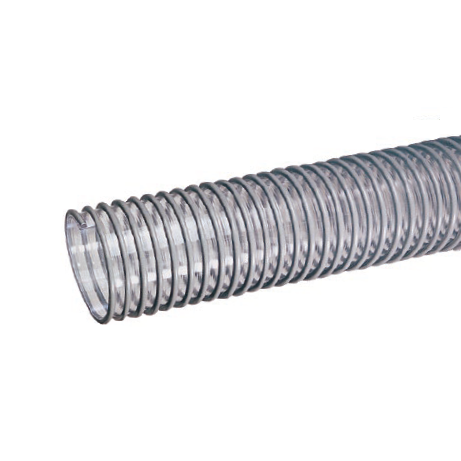

GT150X50 Kuriyama Tigerflex GT Series PVC Ducting/Material Handling Hose - 1-1/2" - 50ft

GT150X50 Tigerflex by Kuriyama | GT Series | Ducting/Material Handling Hose | 1-1/2" ID | PVC | 50ft Length

Save $43.68 Save $43.68
$152.88
$152.88 - $152.88
$152.88
$109.20
$109.20 - $109.20
$109.20

Kuriyama Tigerflex GT™ Series PVC Ducting/Material Handling Hose


Package Quantity: 50 FT

Specifications for Variant SKU: GT150X50 Kuriyama | 50 |
Brand: Tigerflex
Series: GT Series
Hose Color(s): Grey & Clear/Semi-Clear
Internal Diameter: 1.50in
Outer Diameter: 1.82in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Cable protection, Drain lines, Dust collection, Ducting, ventilation and fume removal, Material handling - light duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Transparent Construction (GT series only) - "See-theflow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
GT150X100 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22 in. Hg 14 in. Hg 1" 100ft 0.23 lbs
GT150X50 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22 in. Hg 14 in. Hg 1" 50ft 0.23 lbs
GT200X100 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 2" 100ft 0.30 lbs
GT200X50 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 2" 50ft 0.30 lbs
GT250X100 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in. Hg 10 in. Hg 2" 100ft 0.39 lbs
GT250X50 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in. Hg 10 in. Hg 2" 50ft 0.39 lbs
GT300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 100ft 0.50 lbs
GT300X50 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 50ft 0.50 lbs
GT350X100 3-1/2" 88.9mm 4.02" 102.0mm 9 PSI 4 PSI 15 in. Hg 8 in. Hg 3" 100ft 0.68 lbs
GT350X50 3-1/2" 88.9mm 4.02" 102.0mm 9 PSI 4 PSI 15 in. Hg 8 in. Hg 3" 50ft 0.68 lbs
GT400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 100ft 0.77 lbs
GT400X50 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 50ft 0.77 lbs
GT500X100 5" 127.0mm 5.50" 139.7mm 7 PSI 3 PSI 10 in. Hg 6 in. Hg 5" 100ft 0.91 lbs
GT500X50 5" 127.0mm 5.50" 139.7mm 7 PSI 3 PSI 10 in. Hg 6 in. Hg 5" 50ft 0.91 lbs
GT600X100 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 100ft 1.08 lbs
GT600X50 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 50ft 1.08 lbs
GT800X50 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 8" 50ft 1.74 lbs
GT1000X50 10" 254.0mm 11.68" 296.6mm 2 PSI N/A 2 in. Hg N/A 10" 50ft 2.70 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
