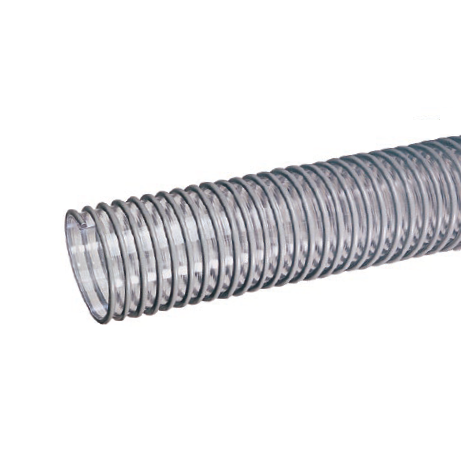

Kuriyama Tigerflex GT™ Series PVC Ducting/Material Handling Hose

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: GT200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	GT Series
Hose Color(s):	Grey & Clear/Semi-Clear
Internal Diameter:	2in
Outer Diameter:	2.39in
Tubing Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Cable protection, Drain lines, Dust collection, Ducting, ventilation and fume removal, Material handling - light duty	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Transparent Construction (GT series only) - "See-theflow." Allows for visual confirmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
GT150X100	1-1/2"	38.1mm	1.82"	46.2mm	20 PSI	7 PSI	22 in. Hg	14 in. Hg	1"	100ft	0.23 lbs
GT150X50	1-1/2"	38.1mm	1.82"	46.2mm	20 PSI	7 PSI	22 in. Hg	14 in. Hg	1"	50ft	0.23 lbs
GT200X100	2"	50.8mm	2.39"	60.8mm	15 PSI	6 PSI	21 in. Hg	12 in. Hg	2"	100ft	0.30 lbs
GT200X50	2"	50.8mm	2.39"	60.8mm	15 PSI	6 PSI	21 in. Hg	12 in. Hg	2"	50ft	0.30 lbs
GT250X100	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19 in. Hg	10 in. Hg	2"	100ft	0.39 lbs
GT250X50	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19 in. Hg	10 in. Hg	2"	50ft	0.39 lbs
GT300X100	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3"	100ft	0.50 lbs
GT300X50	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3"	50ft	0.50 lbs
GT350X100	3-1/2"	88.9mm	4.02"	102.0mm	9 PSI	4 PSI	15 in. Hg	8 in. Hg	3"	100ft	0.68 lbs
GT350X50	3-1/2"	88.9mm	4.02"	102.0mm	9 PSI	4 PSI	15 in. Hg	8 in. Hg	3"	50ft	0.68 lbs
GT400X100	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	100ft	0.77 lbs
GT400X50	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	50ft	0.77 lbs
GT500X100	5"	127.0mm	5.50"	139.7mm	7 PSI	3 PSI	10 in. Hg	6 in. Hg	5"	100ft	0.91 lbs
GT500X50	5"	127.0mm	5.50"	139.7mm	7 PSI	3 PSI	10 in. Hg	6 in. Hg	5"	50ft	0.91 lbs
GT600X100	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	6"	100ft	1.08 lbs
GT600X50	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	6"	50ft	1.08 lbs
GT800X50	8"	203.2mm	8.59"	218.2mm	4 PSI	2 PSI	5 in. Hg	3 in. Hg	8"	50ft	1.74 lbs
GT1000X50	10"	254.0mm	11.68"	296.6mm	2 PSI	N/A	2 in. Hg	N/A	10"	50ft	2.70 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
