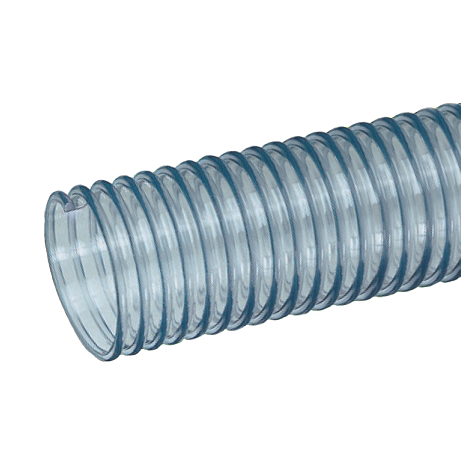

GTF250X100 Kuriyama Tigerflex GTF Series Food Grade PVC Ducting/Material Handling Hose - 2-1/2" - 100ft

GTF250X100 Tigerflex by Kuriyama | GTF Series | Food Grade Ducting/Material Handling Hose | 2-1/2" ID | PVC | 100ft Length

Save $196.56 Save $196.56
$687.96
$687.96 - $687.96
$687.96
$491.40
$491.40 - $491.40
$491.40

Kuriyama Tigerflex GTF™ Series Food Grade PVC Ducting/Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: GTF250X100 Kuriyama | 100 |
Brand: Tigerflex
Series: GTF Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 2.50in
Outer Diameter: 2.89in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties: Outer Helix Protection
Application: Ducting, ventilation and fume removal, Food grade blower and ducting systems, Material handling - light duty, Pharmaceutical product transfer SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) (GTF only) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
GTF200X100 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 2" 100ft 0.30 lbs
GTF250X50 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19in. Hg 10in. Hg 2" 50ft 0.39 lbs
GTF250X100 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19in. Hg 10in. Hg 2" 100ft 0.39 lbs
GTF300X50 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 50ft 0.50 lbs
GTF300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 100ft 0.50 lbs
GTF400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 100ft 0.77 lbs
GTF400X50 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 50ft 0.77 lbs
GTF600X50 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 50ft 1.08 lbs
GTF800X50 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 8" 50ft 1.74 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
