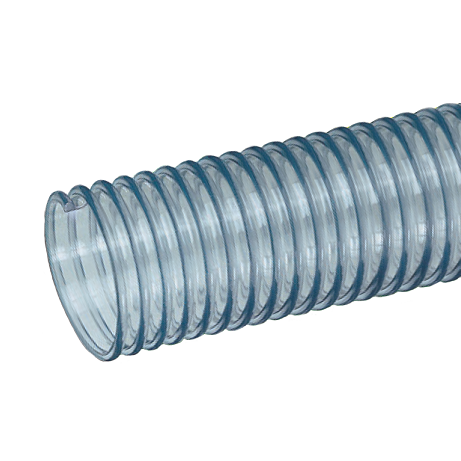

GTF300X100 Kuriyama Tigerflex GTF Series Food Grade PVC Ducting/Material Handling Hose - 3" - 100ft

GTF300X100 Tigerflex by Kuriyama | GTF Series | Food Grade Ducting/Material Handling Hose | 3" ID | PVC | 100ft Length

Save $229.20

$802.20

$802.20 - $802.20

$802.20

$573.00

$573.00 - $573.00

$573.00

Kuriyama Tigerflex GTF™ Series Food Grade PVC Ducting/Material Handling Hose

Package Quantity: 100 FT

Specifications for Variant SKU: GTF300X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	GTF Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	3in
Outer Diameter:	3.46in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties:	Outer Helix Protection

Other Features:
Application:	Ducting, ventilation and fume removal, Food grade blower and ducting systems, Material handling - light duty, Pharmaceutical product transfer	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix.	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) (GTF only) for use in meat and poultry plants. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
GTF200X100	2"	50.8mm	2.39"	60.8mm	15 PSI	6 PSI	21 in. Hg	12 in. Hg	2"	100ft	0.30 lbs
GTF250X50	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19in. Hg	10in. Hg	2"	50ft	0.39 lbs
GTF250X100	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19in. Hg	10in. Hg	2"	100ft	0.39 lbs
GTF300X50	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3"	50ft	0.50 lbs
GTF300X100	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3"	100ft	0.50 lbs
GTF400X100	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	100ft	0.77 lbs
GTF400X50	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	50ft	0.77 lbs
GTF600X50	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	6"	50ft	1.08 lbs
GTF800X50	8"	203.2mm	8.59"	218.2mm	4 PSI	2 PSI	5 in. Hg	3 in. Hg	8"	50ft	1.74 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
