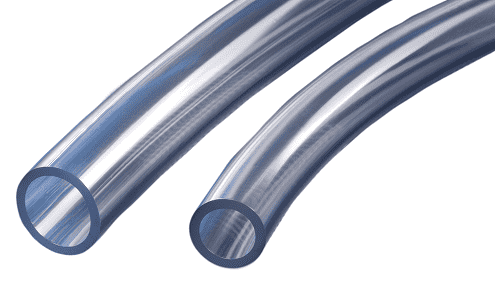

K018-0305X100 Kuri-Tec by Kuriyama | Klearon 68 Series | Clear Tubing | 3/16" ID | 5/16" OD | PVC | 100ft Length

K018-0305X100 Kuri-Tec by Kuriyama | Klearon 68 Series | Clear Tubing | 3/16" ID | 5/16" OD | PVC | 100ft Length

Save $1.82 Save $1.82
$22.22
$22.22 - $22.22
$22.22
$20.40
$20.40 - $20.40
$20.40

Kuriyama Kuri Tec® KLEARON™ 68 Series K018 Clear PVC Tubing Clear Non-toxic PVC food grade tubing for applications requiring more flexibility.

Package Quantity: 100 FT

Specifications for Variant SKU: K018-0305X100 Kuriyama | 100 |
Brand: Klearon, Kuri Tec
Series: K018 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.1875in
Outer Diameter: 0.3125in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant, USP - Class VI

SPECIFICATIONS

Application: Ideal for medical applications requiring USP class VI. Similar to K010 applications in which a slightly more flexible tube is desired by the customer. Tubing for laboratories. Water transfer, purification systems. Beverage dispensing & ice making applications. Water, air, drainage lines. SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03), RoHS(15) and USP(18) Class VI requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), RoHS(15), USP(18)
Other Features:
  • High gloss.
  • Non-toxic Blue.
  • Food grade clear PVC tubing.
  • Self-extinguishing.
  • Compound hardness 68±3 Shore "A".
Part Number Nominal ID Nominal OD Nominal Wall Thickness Working Pressure @ 70deg. F (20 deg. C) Standard Length Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) PSI Ctn/Coils
K018-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 65 PSI 100ft 2.0 lbs
K018-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 55 PSI 100ft 2.7 lbs
K018-0306X100 3/16" 4.8mm 3/8" 9.5mm 3/32" 2.4mm 60 PSI 100ft 4.5 lbs
K018-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 55 PSI 100ft 3.4 lbs
K018-0407X100 1/4" 6.4mm 7/16" 11.1mm 3/32" 2.4mm 58 PSI 100ft 5.5 lbs
K018-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 100ft 4.0 lbs
K018-0508X100 5/16" 7.9mm 1/2" 12.7mm 3/32" 2.4mm 55 PSI 100ft 6.5 lbs
K018-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 100ft 4.7 lbs
K018-0609X100 3/8" 9.5mm 9/16" 14.3mm 3/32" 2.4mm 50 PSI 100ft 7.5 lbs
K018-0709X100 7/16" 11.1mm 9/16" 14.3mm 1/16" 1.6mm 35 PSI 100ft 5.3 lbs
K018-0810X100 1/2" 12.7mm 5/8" 15.9mm 1/16" 1.6mm 30 PSI 100ft 6.0 lbs
K018-1013X100 5/8" 15.9mm 13/16" 20.6mm 3/32" 2.4mm 35 PSI 100ft 11.6 lbs
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® non-reinforced PVC tubing is not recommended. Hose claims involving use of these fittings will be disallowed.
