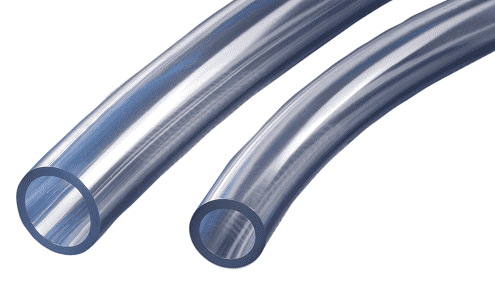

K018-1013X100 Kuri-Tec by Kuriyama | Klearon 68 Series | Clear Tubing | 5/8" ID | 13/16" OD | PVC | 100ft Length

K018-1013X100 Kuri-Tec by Kuriyama | Klearon 68 Series | Clear Tubing | 5/8" ID | 13/16" OD | PVC | 100ft Length

Save $8.30 Save $8.30
$82.97
$82.97 - $82.97
$82.97
$74.67
$74.67 - $74.67
$74.67

Kuriyama Kuri Tec® KLEARON™ 68 Series K018 Clear PVC Tubing Clear Non-toxic PVC food grade tubing for applications requiring more flexibility.

Package Quantity: 100 FT

Specifications for Variant SKU: K018-1013X100 Kuriyama | 100 |
Brand: Klearon, Kuri Tec
Series: K018 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.625in
Outer Diameter: 0.8125in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant, USP - Class VI

SPECIFICATIONS

Application: Ideal for medical applications requiring USP class VI. Similar to K010 applications in which a slightly more flexible tube is desired by the customer. Tubing for laboratories. Water transfer, purification systems. Beverage dispensing & ice making applications. Water, air, drainage lines. SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03), RoHS(15) and USP(18) Class VI requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), RoHS(15), USP(18)
Other Features:
  • High gloss.
  • Non-toxic Blue.
  • Food grade clear PVC tubing.
  • Self-extinguishing.
  • Compound hardness 68±3 Shore "A".
Part Number Nominal ID Nominal OD Nominal Wall Thickness Working Pressure @ 70deg. F (20 deg. C) Standard Length Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) PSI Ctn/Coils
K018-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 65 PSI 100ft 2.0 lbs
K018-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 55 PSI 100ft 2.7 lbs
K018-0306X100 3/16" 4.8mm 3/8" 9.5mm 3/32" 2.4mm 60 PSI 100ft 4.5 lbs
K018-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 55 PSI 100ft 3.4 lbs
K018-0407X100 1/4" 6.4mm 7/16" 11.1mm 3/32" 2.4mm 58 PSI 100ft 5.5 lbs
K018-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 100ft 4.0 lbs
K018-0508X100 5/16" 7.9mm 1/2" 12.7mm 3/32" 2.4mm 55 PSI 100ft 6.5 lbs
K018-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 100ft 4.7 lbs
K018-0609X100 3/8" 9.5mm 9/16" 14.3mm 3/32" 2.4mm 50 PSI 100ft 7.5 lbs
K018-0709X100 7/16" 11.1mm 9/16" 14.3mm 1/16" 1.6mm 35 PSI 100ft 5.3 lbs
K018-0810X100 1/2" 12.7mm 5/8" 15.9mm 1/16" 1.6mm 30 PSI 100ft 6.0 lbs
K018-1013X100 5/8" 15.9mm 13/16" 20.6mm 3/32" 2.4mm 35 PSI 100ft 11.6 lbs
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® non-reinforced PVC tubing is not recommended. Hose claims involving use of these fittings will be disallowed.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
