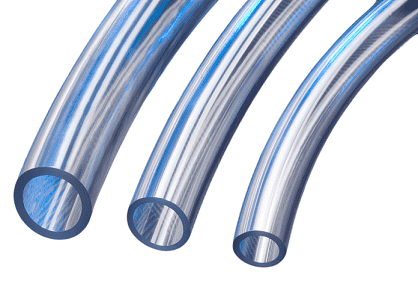

K050-1013X100 Kuri-Tec by Kuriyama | K050 Series | Clear Tubing | 5/8" ID | 13/16" OD | PVC | 100ft Length

K050-1013X100 Kuri-Tec by Kuriyama | K050 Series | Clear Tubing | 5/8" ID | 13/16" OD | PVC | 100ft Length

Save $20.40 Save $20.40
$71.40
$71.40 - $71.40
$71.40
$51.00
$51.00 - $51.00
$51.00

Kuriyama Kuri Tec® Series K050 Clear PVC Tubing Utility grade non-toxic clear food grade PVC tubing for general use applications.

Package Quantity: 100 FT

Specifications for Variant SKU: K050-1013X100 Kuriyama | 100 |
Brand: Klearon, Kuri Tec
Series: K050 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.625in
Outer Diameter: 0.8125in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant

SPECIFICATIONS

Application: Air conditioning drainage, Refrigeration drainage. Air lines, Printing press equipment, High efficiency furnace drainage, Transfer of weak chemicals and acids SAE Rating: N/A
Other Ratings: N/A Tube: Clear PVC compound formulated with ingredients in compliance with applicable FDA(03) and RoHS(15) requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), RoHS(15)
Other Features:
  • High gloss clear appearance with glass smooth interior to reduce sediment buildup.
  • FDA compliant, non-toxic PVC compound.
  • Self-extinguishing.
  • Compound hardness 73± Shore "A".
Part Number Nominal ID Nominal OD Nominal Wall Thickness Working Pressure @ 70deg. F (20 deg. C) Standard Length Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) PSI Ctn/Coils
K050-0156X500S 5/32" N/A 3/8" N/A N/A N/A N/A 500ft N/A
K050-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 65 PSI 100ft 2.0 lbs.
K050-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 55 PSI 100ft 2.7 lbs.
K050-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 55 PSI 100ft 3.4 lbs.
K050-0408X100 1/4" 6.4mm 1/2" 12.7mm 1/8" 3.2mm 60 PSI 100ft 8.0 lbs.
K050-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 100ft 4.0 lbs.
K050-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 100ft 4.7 lbs.
K050-0609X100 3/8" 9.5mm 9/16" 14.3mm 3/32" 2.4mm 50 PSI 100ft 7.5 lbs.
K050-0610X100 3/8" 9.5mm 5/8" 15.9mm 1/8" 3.2mm 55 PSI 100ft 10.7 lbs.
K050-0810X100 1/2" 12.7mm 5/8" 15.9mm 1/16" 1.6mm 30 PSI 100ft 6.0 lbs.
K050-0812X100 1/2" 12.7mm 3/4" 19.1mm 1/8" 3.2mm 45 PSI 100ft 13.4 lbs.
K050-1013X100 5/8" 15.9mm 13/16" 20.6mm 3/32" 2.4mm 35 PSI 100ft 11.6 lbs.
K050-1014X100 5/8" 15.9mm 7/8" 22.2mm 1/8" 3.2mm 40 PSI 100ft 16.1 lbs.
K050-1216X100 3/4" 19.1mm 1" 25.4mm 1/8" 3.2mm 35 PSI 100ft 18.8 lbs.
K050-1418X100 7/8" 22.2mm 1-1/8" 28.6mm 1/8" 3.2mm 30 PSI 100ft 21.4 lbs.
K050-1620X100 1" 25.4mm 1-1/4" 31.8mm 1/8" 3.2mm 25 PSI 100ft 24.1 lbs.
K050-2024X50 1-1/4" 31.8mm 1-1/2" 38.1mm 1/8" 3.2mm 20 PSI 50ft 14.8 lbs.
K050-2430X50 1-1/2" 38.1mm 1-7/8" 47.6mm 3/16" 4.8mm 30 PSI 50ft 27.1 lbs.
K050-2432X50 1-1/2" 38.1mm 2" 50.8mm 1/4" 6.4mm 35 PSI 50ft 37.5 lbs.
K050-3240X50 2" 50.8mm 2-1/2" 63.5mm 1/4" 6.4mm 35 PSI 50ft 48.2 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
