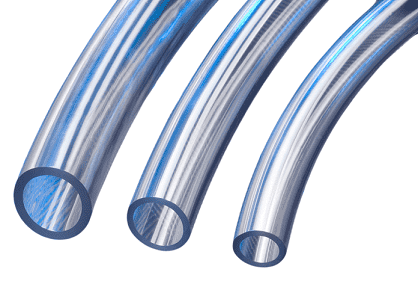

K050-1620X100 Kuri-Tec by Kuriyama | K050 Series | Clear Tubing | 1" ID | 1-1/4" OD | PVC | 100ft Length

K050-1620X100 Kuri-Tec by Kuriyama | K050 Series | Clear Tubing | 1" ID | 1-1/4" OD | PVC | 100ft Length

Save $39.12 Save $39.12
$136.92
$136.92 - $136.92
$136.92
$97.80
$97.80 - $97.80
$97.80

Kuriyama Kuri Tec® Series K050 Clear PVC Tubing Utility grade non-toxic clear food grade PVC tubing for general use applications.

Package Quantity: 100 FT

Specifications for Variant SKU: K050-1620X100 Kuriyama | 100 |
Brand: Klearon, Kuri Tec
Series: K050 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.25in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant

SPECIFICATIONS

Application: Air conditioning drainage, Refrigeration drainage. Air lines, Printing press equipment, High efficiency furnace drainage, Transfer of weak chemicals and acids SAE Rating: N/A
Other Ratings: N/A Tube: Clear PVC compound formulated with ingredients in compliance with applicable FDA(03) and RoHS(15) requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), RoHS(15)
Other Features:
  • High gloss clear appearance with glass smooth interior to reduce sediment buildup.
  • FDA compliant, non-toxic PVC compound.
  • Self-extinguishing.
  • Compound hardness 73± Shore "A".
Part Number Nominal ID Nominal OD Nominal Wall Thickness Working Pressure @ 70deg. F (20 deg. C) Standard Length Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) PSI Ctn/Coils
K050-0156X500S 5/32" N/A 3/8" N/A N/A N/A N/A 500ft N/A
K050-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 65 PSI 100ft 2.0 lbs.
K050-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 55 PSI 100ft 2.7 lbs.
K050-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 55 PSI 100ft 3.4 lbs.
K050-0408X100 1/4" 6.4mm 1/2" 12.7mm 1/8" 3.2mm 60 PSI 100ft 8.0 lbs.
K050-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 100ft 4.0 lbs.
K050-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 100ft 4.7 lbs.
K050-0609X100 3/8" 9.5mm 9/16" 14.3mm 3/32" 2.4mm 50 PSI 100ft 7.5 lbs.
K050-0610X100 3/8" 9.5mm 5/8" 15.9mm 1/8" 3.2mm 55 PSI 100ft 10.7 lbs.
K050-0810X100 1/2" 12.7mm 5/8" 15.9mm 1/16" 1.6mm 30 PSI 100ft 6.0 lbs.
K050-0812X100 1/2" 12.7mm 3/4" 19.1mm 1/8" 3.2mm 45 PSI 100ft 13.4 lbs.
K050-1013X100 5/8" 15.9mm 13/16" 20.6mm 3/32" 2.4mm 35 PSI 100ft 11.6 lbs.
K050-1014X100 5/8" 15.9mm 7/8" 22.2mm 1/8" 3.2mm 40 PSI 100ft 16.1 lbs.
K050-1216X100 3/4" 19.1mm 1" 25.4mm 1/8" 3.2mm 35 PSI 100ft 18.8 lbs.
K050-1418X100 7/8" 22.2mm 1-1/8" 28.6mm 1/8" 3.2mm 30 PSI 100ft 21.4 lbs.
K050-1620X100 1" 25.4mm 1-1/4" 31.8mm 1/8" 3.2mm 25 PSI 100ft 24.1 lbs.
K050-2024X50 1-1/4" 31.8mm 1-1/2" 38.1mm 1/8" 3.2mm 20 PSI 50ft 14.8 lbs.
K050-2430X50 1-1/2" 38.1mm 1-7/8" 47.6mm 3/16" 4.8mm 30 PSI 50ft 27.1 lbs.
K050-2432X50 1-1/2" 38.1mm 2" 50.8mm 1/4" 6.4mm 35 PSI 50ft 37.5 lbs.
K050-3240X50 2" 50.8mm 2-1/2" 63.5mm 1/4" 6.4mm 35 PSI 50ft 48.2 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
