K3130-06X300 Kuri-Tec by Kuriyama | Clearbraid K3130 Series | BF Heavy Wall Food & Beverage Hose | 3/8" ID | .625" OD | PVC | 300ft Length

K3130-06X300 Kuri-Tec by Kuriyama | Clearbraid K3130 Series | BF Heavy Wall Food & Beverage Hose | 3/8" ID | .625" OD | PVC | 300ft Length

Save $180.00 Save $180.00
$450.00
$450.00 - $450.00
$450.00
$270.00
$270.00 - $270.00
$270.00

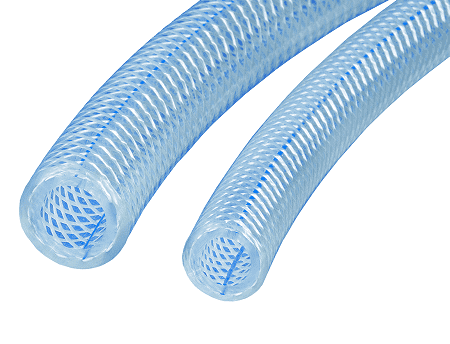

Kuriyama Kuri Tec® CLEARBRAID&reg Series K3130 BF Heavy Wall PVC Food & Beverage Hose A heavier walled crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications.

Package Quantity: 300 FT

Specifications for Variant SKU: K3130-06X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: K3130 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Application: Food & beverage dispensing, Deionized water, Liquid food products, Air and water lines, Powdered food products, Potable water transfer, Air breathing lines, Pneumatic lines, Packaging machines. SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria.
Reinforcement: Reinforced with spiraled polyester yarn and longitudinal Blue tracer yarns for identification. Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17), UL(16), USP(18)
Other Features:
  • Constructed with non-toxic compounds.
  • NSF-51 certified material.
  • Crystal clear - allows visual confirmation of product flow.
  • Longitudinally-reinforced to reduce elongation under pressure.
  • Light weight.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • Non-conductive.
  • One-piece lengths.
  • Resistant to chemicals.
  • Compound hardness 73±3 Shore "A".
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
K3130-02X100 1/8" 3.2mm .328" 8.3mm 350 PSI 200 PSI 100 ft. 4 lbs.
K3130-02X300 1/8" 3.2mm .328" 8.3mm 350 PSI 200 PSI 300 ft. 12 lbs.
K3130-03X100 3/16" 4.8mm .406" 10.3mm 350 PSI 200 PSI 100 ft. 6 lbs.
K3130-03X300 3/16" 4.8mm .406" 10.3mm 350 PSI 200 PSI 300 ft. 17 lbs.
K3130-04X100 1/4" 6.5mm .500" 12.7mm 350 PSI 200 PSI 100 ft. 8 lbs.
K3130-04X300 1/4" 6.5mm .500" 12.7mm 350 PSI 200 PSI 300 ft. 24 lbs.
K3130-04X2-5KR 1/4" 6.5mm .500" 12.7mm 350 PSI 200 PSI 2500 ft. N/A
K3130-05X100 5/16" 7.9mm .563" 14.3mm 275 PSI 160 PSI 100 ft. 9 lbs.
K3130-05X300 5/16" 7.9mm .563" 14.3mm 275 PSI 160 PSI 300 ft. 9 lbs.
K3130-06X100 3/8" 9.5mm .625" 15.9mm 275 PSI 145 PSI 100 ft. 11 lbs.
K3130-06X300 3/8" 9.5mm .625" 15.9mm 275 PSI 145 PSI 300 ft. 32 lbs.
K3130-08X100 1/2" 12.7mm .813" 20.7mm 250 PSI 130 PSI 100 ft. 17 lbs.
K3130-08X300 1/2" 12.7mm .813" 20.7mm 250 PSI 130 PSI 300 ft. 52 lbs.
K3130-10X100 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 100 ft. 26 lbs.
K3130-10X200 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 200 ft. 52 lbs.
K3130-10X50 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 50 ft. N/A
K3130-12X100 3/4" 19.1mm 1.125" 28.6mm 200 PSI 120 PSI 100 ft. 30 lbs.
K3130-12X200 3/4" 19.1mm 1.125" 28.6mm 200 PSI 120 PSI 200 ft. 60 lbs.
K3130-16X100 1" 25.4mm 1.375" 34.9mm 150 PSI 85 PSI 100 ft. 38 lbs.
K3130-16X200 1" 25.4mm 1.375" 34.9mm 150 PSI 85 PSI 200 ft. 76 lbs.
K3130-20X100 1-1/4" 31.8mm 1.750" 44.5mm 125 PSI 75 PSI 100 ft. 64 lbs.
K3130-20X50 1-1/4" 31.8mm 1.750" 44.5mm 125 PSI 75 PSI 50 ft. 32 lbs.
K3130-24X100 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 65 PSI 100 ft. 75 lbs.
K3130-24X50 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 65 PSI 50 ft. 38 lbs.
K3130-32X100 2" 50.8mm 2.500" 63.5mm 75 PSI 55 PSI 100 ft. 96 lbs.
K3130-32X50 2" 50.8mm 2.500" 63.5mm 75 PSI 55 PSI 50 ft. 48 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.
