K3130-32X100 Kuri-Tec by Kuriyama | Clearbraid K3130 Series | BF Heavy Wall Food & Beverage Hose | 2" ID | 2.500" OD | PVC | 100ft Length

K3130-32X100 Kuri-Tec by Kuriyama | Clearbraid K3130 Series | BF Heavy Wall Food & Beverage Hose | 2" ID | 2.500" OD | PVC | 100ft Length

Save $338.40 Save $338.40
$1,184.40
$1,184.40 - $1,184.40
$1,184.40
$846.00
$846.00 - $846.00
$846.00

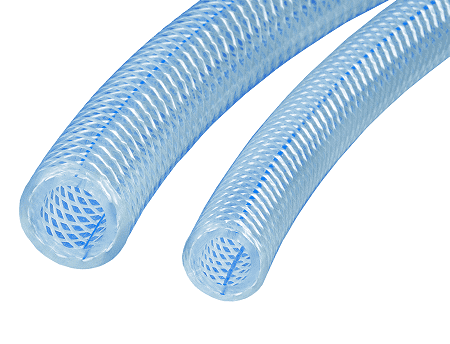

Kuriyama Kuri Tec® CLEARBRAID&reg Series K3130 BF Heavy Wall PVC Food & Beverage Hose A heavier walled crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications.

Package Quantity: 100 FT

Specifications for Variant SKU: K3130-32X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: K3130 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 2in
Outer Diameter: 20.50in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Application: Food & beverage dispensing, Deionized water, Liquid food products, Air and water lines, Powdered food products, Potable water transfer, Air breathing lines, Pneumatic lines, Packaging machines. SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria.
Reinforcement: Reinforced with spiraled polyester yarn and longitudinal Blue tracer yarns for identification. Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17), UL(16), USP(18)
Other Features:
  • Constructed with non-toxic compounds.
  • NSF-51 certified material.
  • Crystal clear - allows visual confirmation of product flow.
  • Longitudinally-reinforced to reduce elongation under pressure.
  • Light weight.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • Non-conductive.
  • One-piece lengths.
  • Resistant to chemicals.
  • Compound hardness 73±3 Shore "A".
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
K3130-02X100 1/8" 3.2mm .328" 8.3mm 350 PSI 200 PSI 100 ft. 4 lbs.
K3130-02X300 1/8" 3.2mm .328" 8.3mm 350 PSI 200 PSI 300 ft. 12 lbs.
K3130-03X100 3/16" 4.8mm .406" 10.3mm 350 PSI 200 PSI 100 ft. 6 lbs.
K3130-03X300 3/16" 4.8mm .406" 10.3mm 350 PSI 200 PSI 300 ft. 17 lbs.
K3130-04X100 1/4" 6.5mm .500" 12.7mm 350 PSI 200 PSI 100 ft. 8 lbs.
K3130-04X300 1/4" 6.5mm .500" 12.7mm 350 PSI 200 PSI 300 ft. 24 lbs.
K3130-04X2-5KR 1/4" 6.5mm .500" 12.7mm 350 PSI 200 PSI 2500 ft. N/A
K3130-05X100 5/16" 7.9mm .563" 14.3mm 275 PSI 160 PSI 100 ft. 9 lbs.
K3130-05X300 5/16" 7.9mm .563" 14.3mm 275 PSI 160 PSI 300 ft. 9 lbs.
K3130-06X100 3/8" 9.5mm .625" 15.9mm 275 PSI 145 PSI 100 ft. 11 lbs.
K3130-06X300 3/8" 9.5mm .625" 15.9mm 275 PSI 145 PSI 300 ft. 32 lbs.
K3130-08X100 1/2" 12.7mm .813" 20.7mm 250 PSI 130 PSI 100 ft. 17 lbs.
K3130-08X300 1/2" 12.7mm .813" 20.7mm 250 PSI 130 PSI 300 ft. 52 lbs.
K3130-10X100 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 100 ft. 26 lbs.
K3130-10X200 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 200 ft. 52 lbs.
K3130-10X50 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 50 ft. N/A
K3130-12X100 3/4" 19.1mm 1.125" 28.6mm 200 PSI 120 PSI 100 ft. 30 lbs.
K3130-12X200 3/4" 19.1mm 1.125" 28.6mm 200 PSI 120 PSI 200 ft. 60 lbs.
K3130-16X100 1" 25.4mm 1.375" 34.9mm 150 PSI 85 PSI 100 ft. 38 lbs.
K3130-16X200 1" 25.4mm 1.375" 34.9mm 150 PSI 85 PSI 200 ft. 76 lbs.
K3130-20X100 1-1/4" 31.8mm 1.750" 44.5mm 125 PSI 75 PSI 100 ft. 64 lbs.
K3130-20X50 1-1/4" 31.8mm 1.750" 44.5mm 125 PSI 75 PSI 50 ft. 32 lbs.
K3130-24X100 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 65 PSI 100 ft. 75 lbs.
K3130-24X50 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 65 PSI 50 ft. 38 lbs.
K3130-32X100 2" 50.8mm 2.500" 63.5mm 75 PSI 55 PSI 100 ft. 96 lbs.
K3130-32X50 2" 50.8mm 2.500" 63.5mm 75 PSI 55 PSI 50 ft. 48 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
