K4350-06X300 Kuri-Tec by Kuriyama | K4350 Series | Yarn-Reinforced Spray Hose | Clear | 3/8" ID | .594" OD | 300ft Length | EVA

K4350-06X300 Kuri-Tec by Kuriyama | K4350 Series | Yarn-Reinforced Spray Hose | Clear | 3/8" ID | .594" OD | 300ft Length | EVA

Save $123.60 Save $123.60
$309.00
$309.00 - $309.00
$309.00
$185.40
$185.40 - $185.40
$185.40

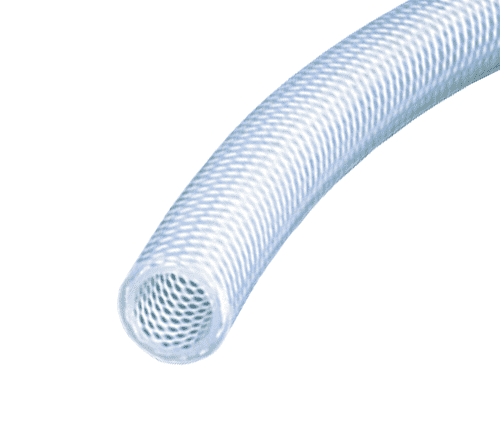

Kuriyama Kuri Tec® K4350 Series EVA Yarn-Reinforced Spray Hose A yarn reinforced EVA hose suitable for low pressure spraying and transfer of agricultural chemicals.

Package Quantity: 300 FT

Specifications for Variant SKU: K4350-06X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: K4350 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.594in
Tubing Construction: Ethylene-Vinyl Acetate Copolymer
Cover Construction: Ethylene-Vinyl Acetate Copolymer
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Agricultural spray applications, including anhydrous ammonia fertilizer, Low pressure transfer of liquids and gases, including chemicals. Low pressure lawn spray SAE Rating: N/A
Other Ratings: N/A Tube: Translucent EVA copolymer
Reinforcement: High tensile strength yarn. Cover: Translucent EVA copolymer.
Temperature Range: -30 deg. F (-35 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Highly flexible.
  • Higher working pressures than non-reinforced EVA tubing.
  • Excellent low temperature flexibility.
  • Excellent chemical resistance.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K4350-06X300 3/8" 9.5mm .594" 15.1mm 300 PSI 100 PSI 300 ft Coil 22 lbs.
K4350-06X500 3/8" 9.5mm .594" 15.1mm 300 PSI 100 PSI 500 ft Reel 41 lbs.
K4350-08X300 1/2" 12.7mm .719" 18.3mm 250 PSI 75 PSI 300 ft Coil 26 lbs.
K4350-08X500 1/2" 12.7mm .719" 18.3mm 250 PSI 75 PSI 500 ft Reel 51 lbs.
K4350-12X300 3/4" 19.1mm .970" 24.6mm 150 PSI 40 PSI 300 ft Coil 36 lbs.
K4350-16X200 1" 25.4mm 1.313" 33.4mm 150 PSI 30 PSI 200 ft Coil 47 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
