K4350-06X500 Kuri-Tec by Kuriyama | K4350 Series | Yarn-Reinforced Spray Hose | Clear | 3/8" ID | .594" OD | 500ft Length | EVA

K4350-06X500 Kuri-Tec by Kuriyama | K4350 Series | Yarn-Reinforced Spray Hose | Clear | 3/8" ID | .594" OD | 500ft Length | EVA

Save $31.74 Save $31.74
$340.74
$340.74 - $340.74
$340.74
$309.00
$309.00 - $309.00
$309.00

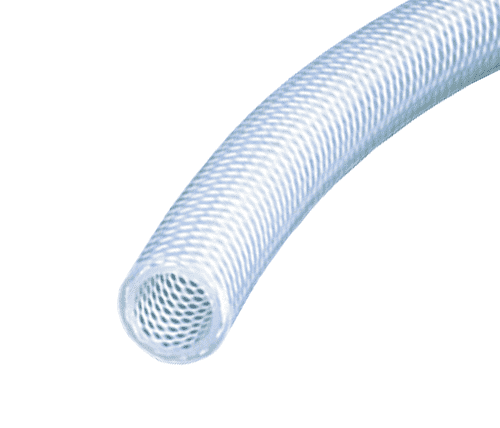

Kuriyama Kuri Tec® K4350 Series EVA Yarn-Reinforced Spray Hose A yarn reinforced EVA hose suitable for low pressure spraying and transfer of agricultural chemicals.

Package Quantity: 500 FT

Specifications for Variant SKU: K4350-06X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K4350 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.594in
Tubing Construction: Ethylene-Vinyl Acetate Copolymer
Cover Construction: Ethylene-Vinyl Acetate Copolymer
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Agricultural spray applications, including anhydrous ammonia fertilizer, Low pressure transfer of liquids and gases, including chemicals. Low pressure lawn spray SAE Rating: N/A
Other Ratings: N/A Tube: Translucent EVA copolymer
Reinforcement: High tensile strength yarn. Cover: Translucent EVA copolymer.
Temperature Range: -30 deg. F (-35 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Highly flexible.
  • Higher working pressures than non-reinforced EVA tubing.
  • Excellent low temperature flexibility.
  • Excellent chemical resistance.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K4350-06X300 3/8" 9.5mm .594" 15.1mm 300 PSI 100 PSI 300 ft Coil 22 lbs.
K4350-06X500 3/8" 9.5mm .594" 15.1mm 300 PSI 100 PSI 500 ft Reel 41 lbs.
K4350-08X300 1/2" 12.7mm .719" 18.3mm 250 PSI 75 PSI 300 ft Coil 26 lbs.
K4350-08X500 1/2" 12.7mm .719" 18.3mm 250 PSI 75 PSI 500 ft Reel 51 lbs.
K4350-12X300 3/4" 19.1mm .970" 24.6mm 150 PSI 40 PSI 300 ft Coil 36 lbs.
K4350-16X200 1" 25.4mm 1.313" 33.4mm 150 PSI 30 PSI 200 ft Coil 47 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
