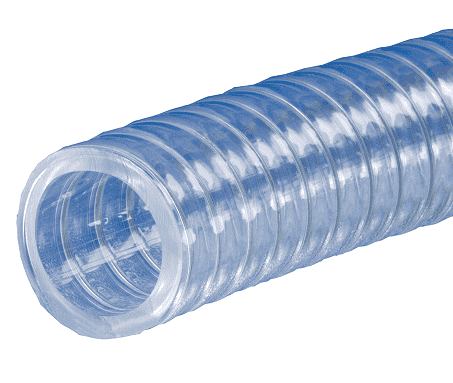

K7160-08X100 Kuri-Tec by Kuriyama | Polyspring K7160 Series | Standard Wall PVC | 100ft Length Food & Beverage Vacuum/Transfer Hose | 1/2" ID | .750" OD | PVC | 100ft Length

Save $14.36

$157.03

$157.03 - $157.03

$157.03

$142.67

$142.67 - $142.67

$142.67

Kuriyama Kuri Tec® POLYSPRING® Series K7160 Standard Wall PVC Food & Beverage Vacuum/Transfer Hose Standard wall food and beverage grade vacuum/transfer hose with rated working pressures.

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: K7160-08X100 Kuriyama \| 100 \|
Brand:	Kuri Tec
Series:	K7160 Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.50in
Outer Diameter:	0.75in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Other Features:
Application:	Full vacuum lines, Industrial vacuum pumps, Food & beverage dispensing, Air and water supply lines, Pneumatic parts transfer, Car wash applications, Coolant lines, Air breathing lines, Deionized water systems	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement:	Helically-wound spring steel wire	Cover:	N/A
Temperature Range:	+25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), FDA(03), NSF(13), RoHS(15), USDA(17), USP(18)
29.9" HG vacuum rating. Spiral wire reinforcement prevents kinking or collapsing hose diameter will not expand under normal rated working pressures. Crystal clear - allows visual confirmation of product flow. Glass-smooth interior - reduces material buildup. Electrogalvanized helical steel wire can be used for static dissipation. Resistant to chemicals (see chemical-resistance chart). Self-extinguishing. Non-marking. Non-toxic. Silicone-free. One-piece lengths.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg	Min. Bend Radius
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coils		@ 70 deg. F
K7160-04X100	1/4"	6.4mm	.460"	11.7mm	150 PSI	70 PSI	100 ft.	7 lbs.	1"
K7160-06X100	3/8"	9.5mm	.600"	15.2mm	100 PSI	70 PSI	100 ft.	11 lbs.	1-1/2"
K7160-08X100	1/2"	12.7mm	.750"	19.1mm	100 PSI	70 PSI	100 ft.	15 lbs.	2"
K7160-10X100	5/8"	15.9mm	.891"	22.6mm	100 PSI	50 PSI	100 ft.	19 lbs.	2-1/2"
K7160-12X100	3/4"	19.1mm	1.031"	26.2mm	70 PSI	50 PSI	100 ft.	24 lbs.	3"
K7160-16X100	1"	25.4mm	1.297"	32.9mm	70 PSI	35 PSI	100 ft.	33 lbs.	4"
K7160-20X50	1-1/4"	31.8mm	1.609"	40.9mm	70 PSI	35 PSI	50 ft.	25 lbs.	5"
K7160-24X50	1-1/2"	38.1mm	1.860"	47.2mm	50 PSI	30 PSI	50 ft.	29 lbs.	6"
K7160-32X50	2"	50.8mm	2.391"	60.7mm	50 PSI	30 PSI	50 ft.	42 lbs.	8"
K7160-36X50	2-1/4"	57.2mm	2.750"	69.9mm	50 PSI	30 PSI	50 ft.	58 lbs.	9"
K7160-40X50	2-1/2"	63.5mm	3.000"	76.2mm	50 PSI	30 PSI	50 ft.	69 lbs.	10"
K7160-48X50	3"	76.2mm	3.500"	88.9mm	50 PSI	30 PSI	50 ft.	81 lbs.	12"
K7160-48X25	3"	76.2mm	3.500"	88.9mm	50 PSI	30 PSI	25 ft.	40.5 lbs.	12"

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
