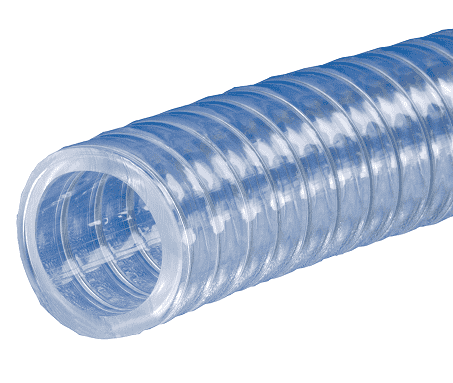

K7160-24X50 Kuri-Tec by Kuriyama | Polyspring K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose | 1-1/2" ID | 1.860" OD | PVC | 50ft Length

K7160-24X50 Kuri-Tec by Kuriyama | Polyspring K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose | 1-1/2" ID | 1.860" OD | PVC | 50ft Length

Save $103.56 Save $103.56
$362.46
$362.46 - $362.46
$362.46
$258.90
$258.90 - $258.90
$258.90

Kuriyama Kuri Tec® POLYSPRING® Series K7160 Standard Wall PVC Food & Beverage Vacuum/Transfer Hose Standard wall food and beverage grade vacuum/transfer hose with rated working pressures.

Package Quantity: 50 FT

Specifications for Variant SKU: K7160-24X50 Kuriyama | 50 |
Brand: Kuri Tec
Series: K7160 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1.50in
Outer Diameter: 1.86in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Application: Full vacuum lines, Industrial vacuum pumps, Food & beverage dispensing, Air and water supply lines, Pneumatic parts transfer, Car wash applications, Coolant lines, Air breathing lines, Deionized water systems SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement: Helically-wound spring steel wire Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17), USP(18)
Other Features:
  • 29.9" HG vacuum rating.
  • Spiral wire reinforcement prevents kinking or collapsing hose diameter will not expand under normal rated working pressures.
  • Crystal clear - allows visual confirmation of product flow.
  • Glass-smooth interior - reduces material buildup.
  • Electrogalvanized helical steel wire can be used for static dissipation.
  • Resistant to chemicals (see chemical-resistance chart).
  • Self-extinguishing.
  • Non-marking.
  • Non-toxic.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg Min. Bend Radius
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils @ 70 deg. F
K7160-04X100 1/4" 6.4mm .460" 11.7mm 150 PSI 70 PSI 100 ft. 7 lbs. 1"
K7160-06X100 3/8" 9.5mm .600" 15.2mm 100 PSI 70 PSI 100 ft. 11 lbs. 1-1/2"
K7160-08X100 1/2" 12.7mm .750" 19.1mm 100 PSI 70 PSI 100 ft. 15 lbs. 2"
K7160-10X100 5/8" 15.9mm .891" 22.6mm 100 PSI 50 PSI 100 ft. 19 lbs. 2-1/2"
K7160-12X100 3/4" 19.1mm 1.031" 26.2mm 70 PSI 50 PSI 100 ft. 24 lbs. 3"
K7160-16X100 1" 25.4mm 1.297" 32.9mm 70 PSI 35 PSI 100 ft. 33 lbs. 4"
K7160-20X50 1-1/4" 31.8mm 1.609" 40.9mm 70 PSI 35 PSI 50 ft. 25 lbs. 5"
K7160-24X50 1-1/2" 38.1mm 1.860" 47.2mm 50 PSI 30 PSI 50 ft. 29 lbs. 6"
K7160-32X50 2" 50.8mm 2.391" 60.7mm 50 PSI 30 PSI 50 ft. 42 lbs. 8"
K7160-36X50 2-1/4" 57.2mm 2.750" 69.9mm 50 PSI 30 PSI 50 ft. 58 lbs. 9"
K7160-40X50 2-1/2" 63.5mm 3.000" 76.2mm 50 PSI 30 PSI 50 ft. 69 lbs. 10"
K7160-48X50 3" 76.2mm 3.500" 88.9mm 50 PSI 30 PSI 50 ft. 81 lbs. 12"
K7160-48X25 3" 76.2mm 3.500" 88.9mm 50 PSI 30 PSI 25 ft. 40.5 lbs. 12"
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
