M-DL06-10-16-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M16X1.5 Male Din Light 24° Seat | Carbon Steel

M-DL06-10-16-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M16X1.5 Male Din Light 24° Seat | Carbon Steel

Save $25.13 Save $25.13
$62.82
$62.82 - $62.82
$62.82
$37.69
$37.69 - $37.69
$37.69

Kurt Hydraulics
Din Light 24° Seat Male Rigid
Specifications for Variant SKU: M-DL06-10-16-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, L10 Male DIN
Material(s): Carbon Steel

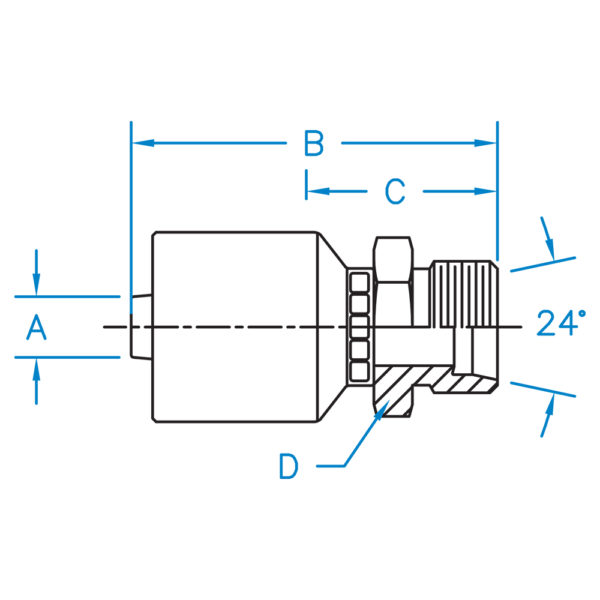

Part Number Hose I.D. (in.) B C D Thread
M-DL04-06-12-K2 1/4" 1.86" 0.80" 5/8" M12 X 1.5
M-DL04-08-14-K2 1/4" 1.86" 0.80" 5/8" M14 X 1.5
M-DL04-10-16-K2 1/4" 2.10" 1.04" 11/16" M16 X 1.5
M-DL06-10-16-K2 3/8" 2.43" 1.06" 11/16" M16 X 1.5
M-DL06-12-18-K2 3/8" 2.39" 1.02" 3/4" M18 X 1.5
M-DL06-15-22-K2 3/8" 2.43" 1.06" 7/8" M22 X 1.5
M-DL08-12-18-K2 1/2" 2.42" 1.08" 7/8" M18 X 1.5
M-DL08-15-22-K2 1/2" 2.45" 1.11" 7/8" M22 X 1.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
