M-DL06-12-18-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M18X1.5 Male Din Light 24° Seat | Carbon Steel

Name: M-DL06-12-18-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M18X1.5 Male Din Light 24° Seat | Carbon Steel
Brand: Kurt Hydraulics
SKU: M-DL06-12-18-K2 Kurt
Price: 25.2 USD
Availability: InStock

Save $16.80

$42.00

$42.00 - $42.00

$42.00

$25.20

$25.20 - $25.20

$25.20

Kurt Hydraulics
Din Light 24° Seat Male Rigid

Specifications for Variant SKU: M-DL06-12-18-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, L12 Male DIN
Material(s):	Carbon Steel

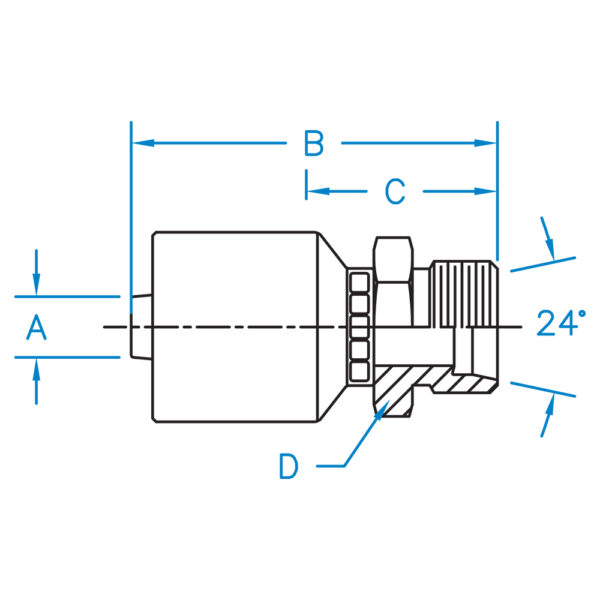

Part Number	Hose I.D. (in.)	B	C	D	Thread
M-DL04-06-12-K2	1/4"	1.86"	0.80"	5/8"	M12 X 1.5
M-DL04-08-14-K2	1/4"	1.86"	0.80"	5/8"	M14 X 1.5
M-DL04-10-16-K2	1/4"	2.10"	1.04"	11/16"	M16 X 1.5
M-DL06-10-16-K2	3/8"	2.43"	1.06"	11/16"	M16 X 1.5
M-DL06-12-18-K2	3/8"	2.39"	1.02"	3/4"	M18 X 1.5
M-DL06-15-22-K2	3/8"	2.43"	1.06"	7/8"	M22 X 1.5
M-DL08-12-18-K2	1/2"	2.42"	1.08"	7/8"	M18 X 1.5
M-DL08-15-22-K2	1/2"	2.45"	1.11"	7/8"	M22 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
