MBX-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Male O-Ring Boss Swivel | Carbon Steel

MBX-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Male O-Ring Boss Swivel | Carbon Steel

Save $12.11 Save $12.11
$30.28
$30.28 - $30.28
$30.28
$18.17
$18.17 - $18.17
$18.17

Kurt Hydraulics
MBX - Male Boss O-Ring Swivel
Specifications for Variant SKU: MBX-06-06-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb x 3/8in Male O-Ring Boss
Material(s): Carbon Steel
Special Properties: Swivel

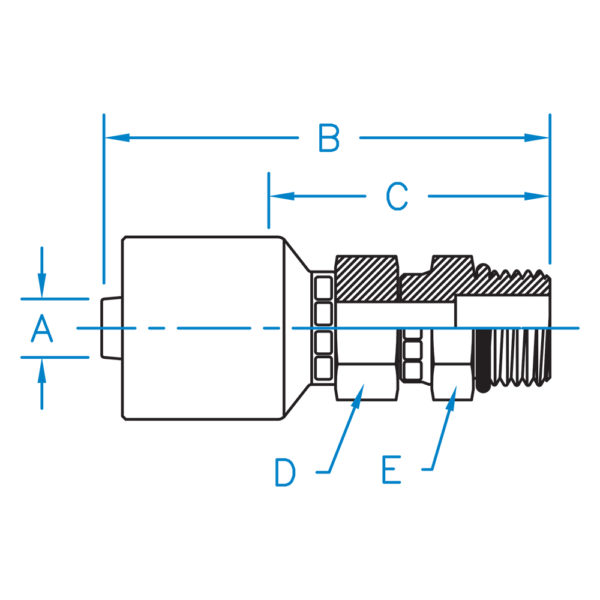

Part Number Hose I.D. (in.) B C D E Thread
MBX-04-04-K2 1/4" 2.60" 1.54" 9/16" 11/16" 7/16 – 20
MBX-04-05-K2 1/4" 2.48" 1.42" 9/16" 3/4" 1/2 – 20
MBX-04-06-K2 1/4" 2.52" 1.46" 9/16" 3/4" 9/16 – 18
MBX-06-04-K2 3/8" 2.87" 1.50" 11/16" 11/16" 7/16 – 20
MBX-06-06-K2 3/8" 2.90" 1.53" 11/16" 3/4" 9/16 – 18
MBX-06-08-K2 3/8" 2.99" 1.62" 3/4" 15/16" 3/4 – 16
MBX-08-08-K2 1/2" 3.02" 1.70" 11/16" 15/16" 3/4 – 16
MBX-08-10-K2 1/2" 3.09" 1.77" 11/16" 1" 7/8 – 14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
