MBX-06-08-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/2" Male O-Ring Boss Swivel | Carbon Steel

Name: MBX-06-08-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/2" Male O-Ring Boss Swivel | Carbon Steel
Brand: Kurt Hydraulics
SKU: MBX-06-08-K2 Kurt
Price: 20.21 USD
Availability: InStock

Save $13.47

$33.68

$33.68 - $33.68

$33.68

$20.21

$20.21 - $20.21

$20.21

Kurt Hydraulics
MBX - Male Boss O-Ring Swivel

Specifications for Variant SKU: MBX-06-08-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb x 1/2in Male O-Ring Boss
Material(s):	Carbon Steel
Special Properties:	Swivel

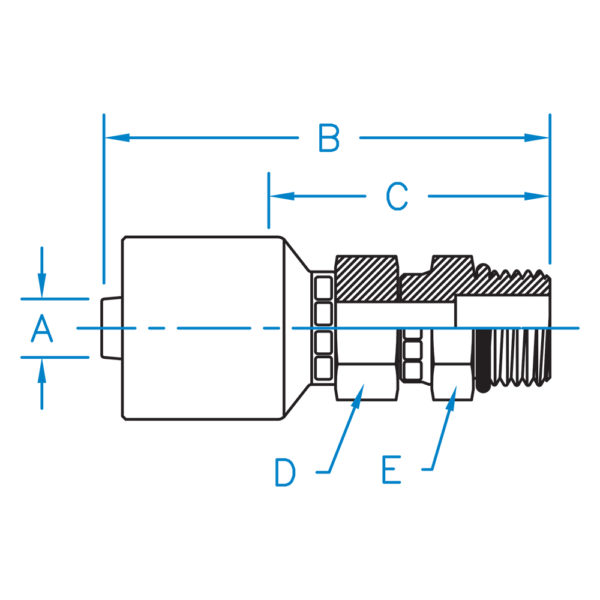

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
MBX-04-04-K2	1/4"	2.60"	1.54"	9/16"	11/16"	7/16 – 20
MBX-04-05-K2	1/4"	2.48"	1.42"	9/16"	3/4"	1/2 – 20
MBX-04-06-K2	1/4"	2.52"	1.46"	9/16"	3/4"	9/16 – 18
MBX-06-04-K2	3/8"	2.87"	1.50"	11/16"	11/16"	7/16 – 20
MBX-06-06-K2	3/8"	2.90"	1.53"	11/16"	3/4"	9/16 – 18
MBX-06-08-K2	3/8"	2.99"	1.62"	3/4"	15/16"	3/4 – 16
MBX-08-08-K2	1/2"	3.02"	1.70"	11/16"	15/16"	3/4 – 16
MBX-08-10-K2	1/2"	3.09"	1.77"	11/16"	1"	7/8 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
