MF-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Male O-Ring Face Seal | Carbon Steel

MF-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Male O-Ring Face Seal | Carbon Steel

Save $10.55 Save $10.55
$26.38
$26.38 - $26.38
$26.38
$15.83
$15.83 - $15.83
$15.83

Kurt Hydraulics
MF - Male Face Seal Rigid
Specifications for Variant SKU: MF-04-04-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb x 1/4in Male O-Ring Face Seal
Material(s): Carbon Steel

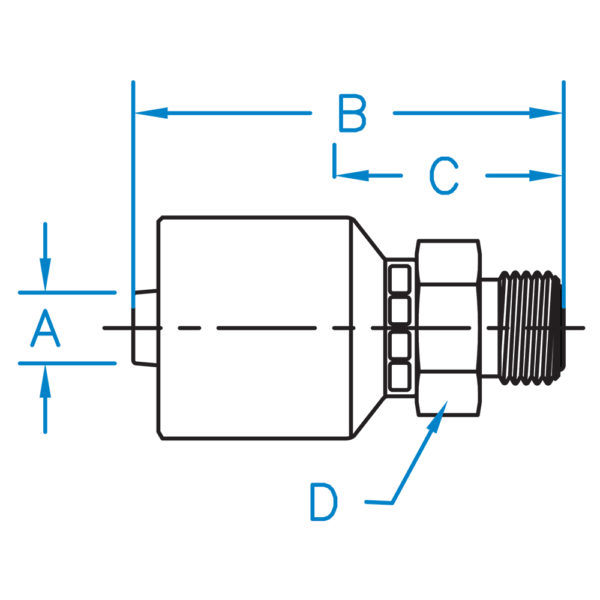

Part Number Hose I.D. (in.) B C D Thread
MF-04-04-K2 1/4" 2.05" 0.97" 5/8" 9/16 – 18
MF-04-06-K2 1/4" 1.91" 0.85" 11/16" 11/16 – 16
MF-06-06-K2 3/8" 2.24" 0.87" 11/16" 11/16 – 16
MF-06-08-K2 3/8" 2.30" 0.93" 7/8" 13/16 – 16
MF-08-08-K2 1/2" 2.33" 0.99" 7/8" 13/16 – 16
MF-08-10-K2 1/2" 2.59" 1.25" 1-1/16" 1 – 14
MF-08-12-K2 1/2" 2.65" 1.31" 1-1/4" 1-3/16 – 12
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
