MF-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Male O-Ring Face Seal | Carbon Steel

Name: MF-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Male O-Ring Face Seal | Carbon Steel
Brand: Kurt Hydraulics
SKU: MF-04-06-K2 Kurt
Price: 20.81 USD
Availability: InStock

Save $13.87

$34.68

$34.68 - $34.68

$34.68

$20.81

$20.81 - $20.81

$20.81

Kurt Hydraulics
MF - Male Face Seal Rigid

Specifications for Variant SKU: MF-04-06-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb x 3/8in Male O-Ring Face Seal
Material(s):	Carbon Steel

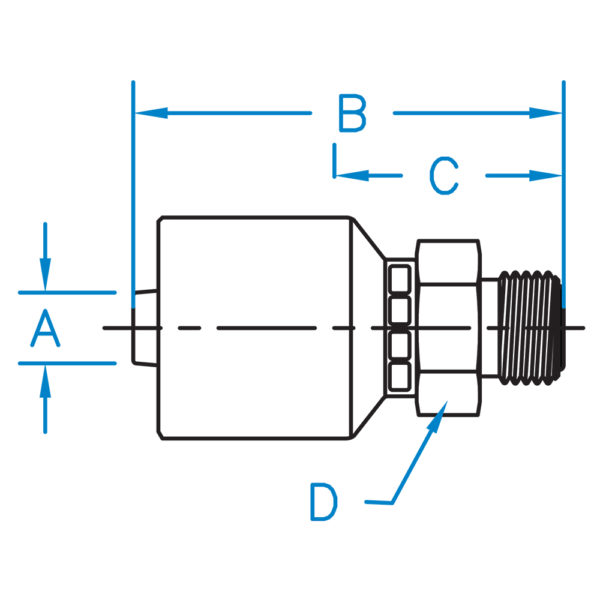

Part Number	Hose I.D. (in.)	B	C	D	Thread
MF-04-04-K2	1/4"	2.05"	0.97"	5/8"	9/16 – 18
MF-04-06-K2	1/4"	1.91"	0.85"	11/16"	11/16 – 16
MF-06-06-K2	3/8"	2.24"	0.87"	11/16"	11/16 – 16
MF-06-08-K2	3/8"	2.30"	0.93"	7/8"	13/16 – 16
MF-08-08-K2	1/2"	2.33"	0.99"	7/8"	13/16 – 16
MF-08-10-K2	1/2"	2.59"	1.25"	1-1/16"	1 – 14
MF-08-12-K2	1/2"	2.65"	1.31"	1-1/4"	1-3/16 – 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
