MIX90-06-06-W by Kurt Hydraulics | Male SAE Inverted Flare | 90 Degree Bent Tube | Swivel | for 3/8" Hose ID

Name: MIX90-06-06-W by Kurt Hydraulics | Male SAE Inverted Flare | 90 Degree Bent Tube | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: MIX90-06-06-W Kurt
Price: 11.95 USD
Availability: InStock

Save $7.97

$19.92

$19.92 - $19.92

$19.92

$11.95

$11.95 - $11.95

$11.95

by Kurt Hydraulics
MIX90-W - 45 deg. SAE Male Inverted Flare 90 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MIX90-06-06-W Kurt
Series:	W Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb, 3/8in Male Inverted Flare
Special Properties:	Swivel

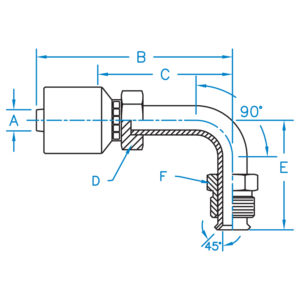

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
MIX90-06-05-W	0.375	2.591	1.221	0.750	1.660	1/2	3/8"	1/2-20
MIX90-06-06-W	0.375	3.984	2.614	0.750	1.690	5/8	3/8"	5/8-18
MIX90-08-08-W	0.500	3.486	2.146	0.875	1.880	3/4	1/2"	3/4-18

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
