MIX90-08-08-W by Kurt Hydraulics | Male SAE Inverted Flare | 90 Degree Bent Tube | Swivel | for 1/2" Hose ID

MIX90-08-08-W by Kurt Hydraulics | Male SAE Inverted Flare | 90 Degree Bent Tube | Swivel | for 1/2" Hose ID

Save $9.82 Save $9.82
$24.55
$24.55 - $24.55
$24.55
$14.73
$14.73 - $14.73
$14.73
by Kurt Hydraulics
MIX90-W - 45 deg. SAE Male Inverted Flare 90 deg. Bent Tube Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MIX90-08-08-W Kurt
Series: W Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb, 1/2in Male Inverted Flare
Special Properties: Swivel

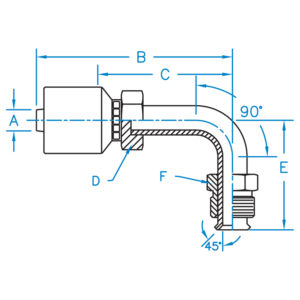

Part Number A B C D E F Hose ID
(In)		 Thread
MIX90-06-05-W 0.375 2.591 1.221 0.750 1.660 1/2 3/8" 1/2-20
MIX90-06-06-W 0.375 3.984 2.614 0.750 1.690 5/8 3/8" 5/8-18
MIX90-08-08-W 0.500 3.486 2.146 0.875 1.880 3/4 1/2" 3/4-18


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
