MP-10-08 by Kurt Hydraulics | Jump Size | Male Pipe NPTF | Rigid | for 5/8" Hose ID

MP-10-08 by Kurt Hydraulics | Jump Size | Male Pipe NPTF | Rigid | for 5/8" Hose ID

Save $5.36 Save $5.36
$13.40
$13.40 - $13.40
$13.40
$8.04
$8.04 - $8.04
$8.04

by Kurt Hydraulics
MP - Male Pipe NPTF Rigid.

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MP-10-08 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 1/2in Male NPTF
Special Properties: Jump Size, Rigid

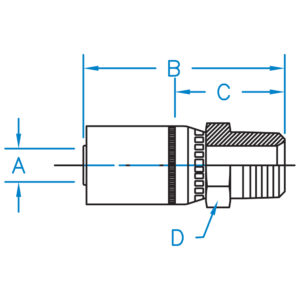

Part Number A B C D Hose ID
(In)		 Thread
MP-02-02 0.125 1.301 0.743 1/2 1/8" 1/8-27
MP-04-02 0.250 2.134 0.880 9/16 1/4" 1/8-27
MP-04-04 0.250 2.315 1.060 9/16 1/4" 1/4-18
MP-04-06 0.250 2.405 1.150 11/16 1/4" 3/8-18
MP-04-08 0.250 2.656 1.401 7/8 1/4" 1/2-14
MP-06-04 0.375 2.670 1.170 11/16 3/8" 1/4-18
MP-06-06 0.375 2.665 1.170 11/16 3/8" 3/8-18
MP-06-08 0.375 2.917 1.422 7/8 3/8" 1/2-14
MP-08-06 0.500 2.743 1.248 7/8 1/2" 3/8-18
MP-08-08 0.500 2.995 1.495 7/8 1/2" 1/2-14
MP-08-12 0.500 2.995 1.500 1-1/8 1/2" 3/4-14
MP10-08 0.625 3.011 1.511 1-1/8 5/8" 1/2-14
MP-10-12 0.625 3.011 1.511 1-1/8 5/8" 3/4-14
MP-12-08 0.750 3.104 1.511 1-1/8 3/4" 1/2-14
MP-12-12 0.750 3.104 1.511 1-1/8 3/4" 3/4-14
MP-12-16 0.750 3.294 1.701 1-3/8 3/4" 1-11-1/2
MP-16-12 1.000 3.261 1.527 1-1/8 1.000" 3/4-14
MP-16-16 1.000 3.451 1.717 1-3/8 1.000" 1-11-1/2
MP-16-16 1.000 4.585 2.851 1-3/8 1.000" 1-11-1/2
MP-20-20 1.250 3.795 1.795 1-3/4 1-1/4" 1-1/4 11-1/2


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
