MP-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male Pipe NPTF | for 1-1/2" Hose ID

Name: MP-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male Pipe NPTF | for 1-1/2" Hose ID
Brand: Kurt Hydraulics
SKU: MP-24-24-JJ Kurt
Price: 53.57 USD
Availability: InStock

Save $6.70

$60.27

$60.27 - $60.27

$60.27

$53.57

$53.57 - $53.57

$53.57

by Kurt Hydraulics
MP-JJ - Male Pipe NPTF Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MP-24-24-JJ Kurt
Series:	MP Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Male NPTF

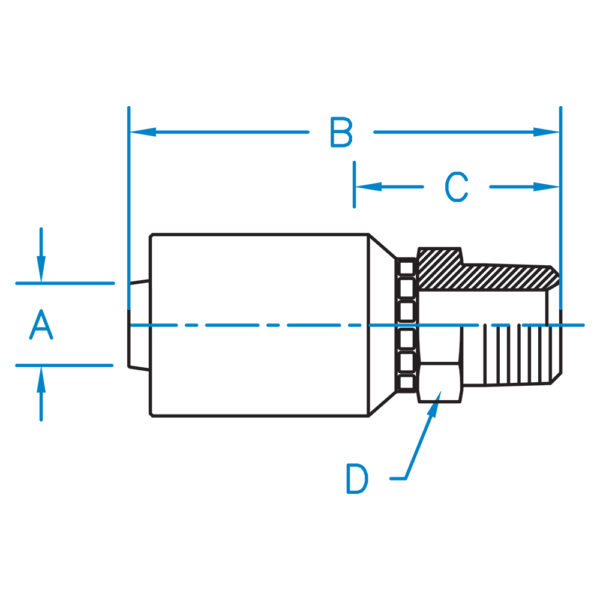

Part Number	A	B	C	D	Hose ID (In)	Thread
MP-20-20-JJ	1.250	4.825	2.225	2.000	1-1/4"	1-1/4 - 11-1/11
MP-24-24-JJ	1.500	4.980	1.980	2-1/8	1-1/2"	1-1/2 - 11-1/2
MP-24-32-JJ	1.500	5.239	2.529	2-1/2	1-1/2"	2 - 11-1/2
MP-32-32-JJ	2.000	6.420	2.130	2-5/8	2.000"	2 - 11-1/2
MP-32-32-JJ-API	2.000	8.165	4.395	2-5/8	2.000"	2 - 11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
