MP-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Male Pipe NPTF | for 1-1/2" Hose ID

MP-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Male Pipe NPTF | for 1-1/2" Hose ID

Save $10.09 Save $10.09
$90.81
$90.81 - $90.81
$90.81
$80.72
$80.72 - $80.72
$80.72

by Kurt Hydraulics
MP-JJ - Male Pipe NPTF Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MP-24-32-JJ Kurt
Series: MP Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Hose Barb, 2in Male NPTF
Special Properties: Jump Size

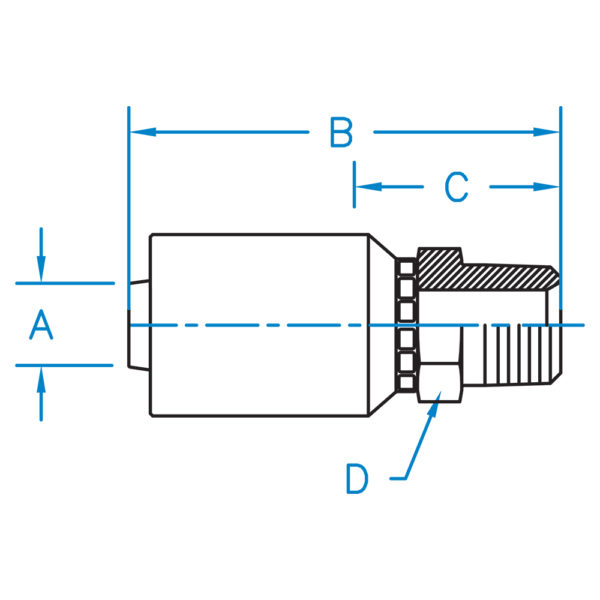

Part Number A B C D Hose ID
(In)		 Thread
MP-20-20-JJ 1.250 4.825 2.225 2.000 1-1/4" 1-1/4 - 11-1/11
MP-24-24-JJ 1.500 4.980 1.980 2-1/8 1-1/2" 1-1/2 - 11-1/2
MP-24-32-JJ 1.500 5.239 2.529 2-1/2 1-1/2" 2 - 11-1/2
MP-32-32-JJ 2.000 6.420 2.130 2-5/8 2.000" 2 - 11-1/2
MP-32-32-JJ-API 2.000 8.165 4.395 2-5/8 2.000" 2 - 11-1/2

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
