MPX-12-12-W by Kurt Hydraulics | Male NPTF | Swivel | for 3/4" Hose ID

Save $1.35 Save $1.35
Original price $12.16
Original price $12.16 - Original price $12.16
Original price $12.16
Current price $10.81
$10.81 - $10.81
Current price $10.81
by Kurt Hydraulics
MPX-W - NPTF Male Pipe Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MPX-12-12-W Kurt
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Special Properties: Swivel

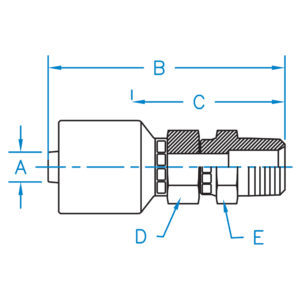

Part Number A B C D E Hose ID
(In)
Thread
MPX-06-04-W 0.375 2.985 1.615 11/16 11/16 3/8" 1/4-18
MPX-06-06-W 0.375 2.990 1.620 11/16 3/4 3/8" 3/8-18
MPX-06-08-W 0.375 3.244 1.874 3/4 15/16 3/8" 1/2-14
MPX-08-06-W 0.500 3.015 1.675 11/16 3/4 1/2" 3/8-18
MPX-08-08-W 0.500 3.269 1.929 11/16 7/8 1/2" 1/2-14
MPX-12-12-W 0.750 3.887 2.008 1-1/8 1-1/8 3/4" 3/4-14
MPX-16-16-W 1.000 4.395 2.270 1-3/8 1-1/2 1.000" 1-11-1/2


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
