MPX-16-16-W by Kurt Hydraulics | Male NPTF | Swivel | for 1" Hose ID

Name: MPX-16-16-W by Kurt Hydraulics | Male NPTF | Swivel | for 1" Hose ID
Brand: Kurt Hydraulics
SKU: MPX-16-16-W Kurt
Price: 21.0 USD
Availability: InStock

Save $14.00

$35.00

$35.00 - $35.00

$35.00

$21.00

$21.00 - $21.00

$21.00

by Kurt Hydraulics
MPX-W - NPTF Male Pipe Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MPX-16-16-W Kurt
Series:	W Series
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1in Male NPTF
Special Properties:	Swivel

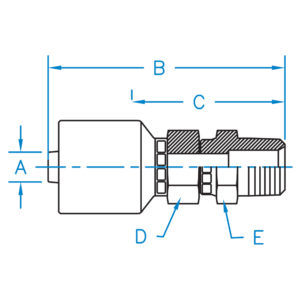

Part Number	A	B	C	D	E	Hose ID (In)	Thread
MPX-06-04-W	0.375	2.985	1.615	11/16	11/16	3/8"	1/4-18
MPX-06-06-W	0.375	2.990	1.620	11/16	3/4	3/8"	3/8-18
MPX-06-08-W	0.375	3.244	1.874	3/4	15/16	3/8"	1/2-14
MPX-08-06-W	0.500	3.015	1.675	11/16	3/4	1/2"	3/8-18
MPX-08-08-W	0.500	3.269	1.929	11/16	7/8	1/2"	1/2-14
MPX-12-12-W	0.750	3.887	2.008	1-1/8	1-1/8	3/4"	3/4-14
MPX-16-16-W	1.000	4.395	2.270	1-3/8	1-1/2	1.000"	1-11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
