MPX90-04-06 by Kurt Hydraulics | Jump Size | Male NPT | Swivel | 90° Elbow | for 1/4" Hose ID

Save $7.71

$19.27

$19.27 - $19.27

$19.27

$11.56

$11.56 - $11.56

$11.56

by Kurt Hydraulics
MPX90 - Male Pipe 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MPX90-04-06 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Hose Barb, 3/8in Male NPT
Special Properties:	Swivel, Jump Size

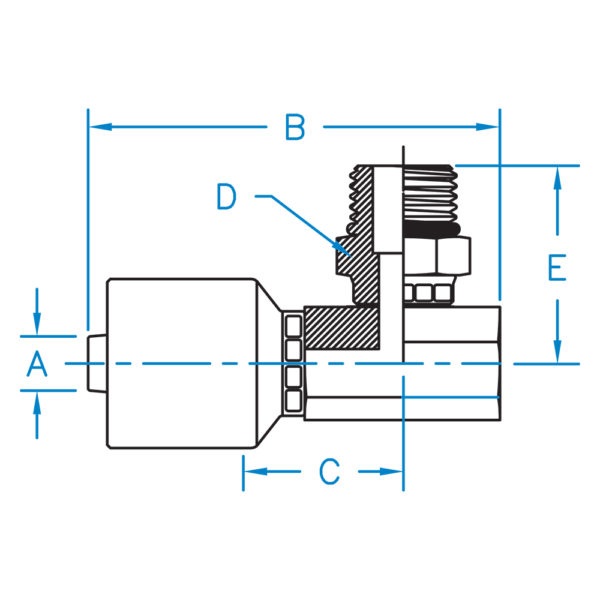

Part Number	A	B	C	D	E	Hose ID (In)	Thread
MPX90-04-04	0.250	2.312	0.650	11/16	1.540	1/4"	1/4-18
MPX90-04-06	0.250	2.312	0.650	3/4	1.540	1/4"	3/8-18
MPX90-06-04	0.375	2.766	0.741	11/16	1.540	3/8"	1/4-18
MPX90-06-06	0.375	2.766	0.741	3/4	1.637	3/8"	3/8-18
MPX90-06-08	0.375	2.766	0.741	7/8	1.836	3/8"	1/2-14
MPX90-08-08	0.500	2.906	0.875	15/16	1.920	1/2"	1/2-14
MPX90-12-12	0.750	3.630	1.000	1-1/8	2.140	3/4"	3/4-14
MPX90-16-16	1.000	3.860	1.251	1-1/2	2.575	1.000"	1 - 11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
