MPX90-08-08 by Kurt Hydraulics | Male NPT | Swivel | 90° Elbow | for 1/2" Hose ID

MPX90-08-08 by Kurt Hydraulics | Male NPT | Swivel | 90° Elbow | for 1/2" Hose ID

Save $1.37 Save $1.37
$12.32
$12.32 - $12.32
$12.32
$10.95
$10.95 - $10.95
$10.95

by Kurt Hydraulics
MPX90 - Male Pipe 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MPX90-08-08 Kurt
Series: MPX90 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb, 1/2in Male NPT
Special Properties: Swivel

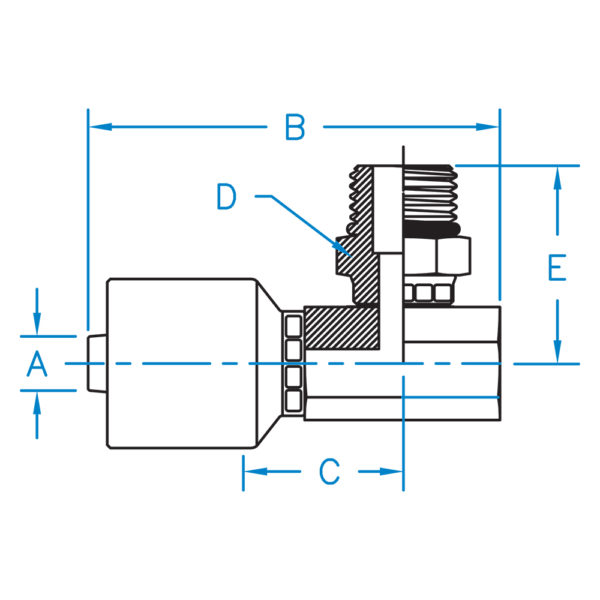

Part Number A B C D E Hose ID
(In)		 Thread
MPX90-04-04 0.250 2.312 0.650 11/16 1.540 1/4" 1/4-18
MPX90-04-06 0.250 2.312 0.650 3/4 1.540 1/4" 3/8-18
MPX90-06-04 0.375 2.766 0.741 11/16 1.540 3/8" 1/4-18
MPX90-06-06 0.375 2.766 0.741 3/4 1.637 3/8" 3/8-18
MPX90-06-08 0.375 2.766 0.741 7/8 1.836 3/8" 1/2-14
MPX90-08-08 0.500 2.906 0.875 15/16 1.920 1/2" 1/2-14
MPX90-12-12 0.750 3.630 1.000 1-1/8 2.140 3/4" 3/4-14
MPX90-16-16 1.000 3.860 1.251 1-1/2 2.575 1.000" 1 - 11-1/2

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
