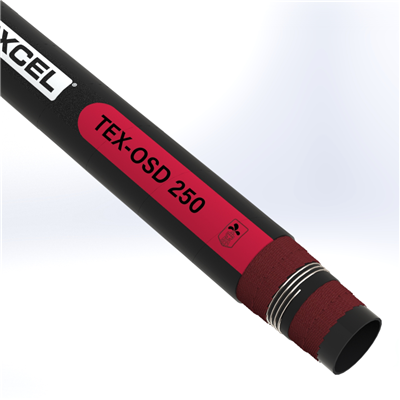

OSD-10.0 by Texcel | TEX-OSD 250 Series | Oil Suction & Discharge Hose | 10" Hose ID | 250 PSI | 29 in/Hg Vacuum Rated | Black

$315.24 - $10,507.80

$315.24

$280.21

$280.21 - $9,340.27

$280.21

Texcel
TEX-OSD 250 Series | 250psi Oil Suction & Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: OSD-10.0-40 Texcel \| 40 \|
Series:	TEX-OSD 250 Series
Hose Color(s):	Black
Internal Diameter:	10in
Outer Diameter:	12.00in
Tubing Construction:	Nitrile
Cover Construction:	Neoprene

Technical Data:
Description:	Smooth bore dock hose with high strength construction and 250psi working pressure for the longest possible service life under severe conditions. Meets U.S.C.G. certification requirements when assembled per USCG 33CFR 154.500 specifications.	Tube:	Black, Nitrile, 55% aromatics (ORS)
Cover:	Black, Neoprene	Reinforcement:	High tensile tire cord plies; dual helix on sizes 2”-4”; single helix wire on sizes 6”-12”
Safety Factor:	4:1	Temperature:	-40°F to +190°F
Branding:	TEXCEL® TEX-OSD 250 - OIL SUCTION AND DISCHARGE HOSE 250 PSI W.P. MEETS USCG 33CFR 154.500	Specifications:	Meets U.S.C.G. requirements

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
OSD-2.0	2"	2-60/64"	250 psi	29	8"	2.15 lbs
OSD-3.0	3"	4-16/64"	250 psi	29	11"	3.41 lbs
OSD-4.0	4"	5-20/64"	250 psi	29	15"	4.87 lbs
OSD-6.0	6"	7-24/64"	250 psi	29	25"	8.18 lbs
OSD-8.0	8"	9-48/64"	250 psi	29	31"	14.35 lbs
OSD-10.0	10"	12"	250 psi	29	36"	20.49 lbs
OSD-12.0	12"	14-8/64"	250 psi	29	40"	26.49 lbs
