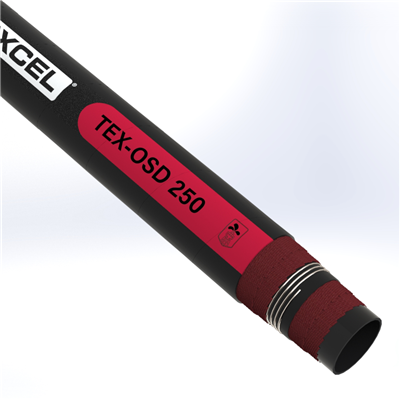

OSD-4.0 by Texcel | TEX-OSD 250 Series | Oil Suction & Discharge Hose | 4" Hose ID | 250 PSI | 29 in/Hg Vacuum Rated | Black

OSD-4.0 by Texcel | TEX-OSD 250 Series | Oil Suction & Discharge Hose | 4" Hose ID | 250 PSI | 29 in/Hg Vacuum Rated | Black

$75.81 - $6,318.00
$75.81
$67.39
$67.39 - $5,616.00
$67.39

Texcel
TEX-OSD 250 Series | 250psi Oil Suction & Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: OSD-4.0-100 Texcel | 100 |
Series: TEX-OSD 250 Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 5.31in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: Smooth bore dock hose with high strength construction and 250psi working pressure for the longest possible service life under severe conditions. Meets U.S.C.G. certification requirements when assembled per USCG 33CFR 154.500 specifications. Tube: Black, Nitrile, 55% aromatics (ORS)
Cover: Black, Neoprene Reinforcement: High tensile tire cord plies; dual helix on sizes 2”-4”; single helix wire on sizes 6”-12”
Safety Factor: 4:1 Temperature: -40°F to +190°F
Branding: TEXCEL® TEX-OSD 250 - OIL SUCTION AND DISCHARGE HOSE 250 PSI W.P. MEETS USCG 33CFR 154.500 Specifications: Meets U.S.C.G. requirements
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
OSD-2.0 2" 2-60/64" 250 psi 29 8" 2.15 lbs
OSD-3.0 3" 4-16/64" 250 psi 29 11" 3.41 lbs
OSD-4.0 4" 5-20/64" 250 psi 29 15" 4.87 lbs
OSD-6.0 6" 7-24/64" 250 psi 29 25" 8.18 lbs
OSD-8.0 8" 9-48/64" 250 psi 29 31" 14.35 lbs
OSD-10.0 10" 12" 250 psi 29 36" 20.49 lbs
OSD-12.0 12" 14-8/64" 250 psi 29 40" 26.49 lbs
