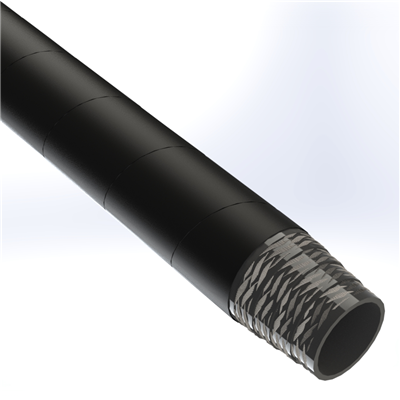

STEAM-.50 by Texcel | TEX-STEAM Series | Wire Braid Steam Hose | 1/2" Hose ID | 250 PSI | Black

STEAM-.50 by Texcel | TEX-STEAM Series | Wire Braid Steam Hose | 1/2" Hose ID | 250 PSI | Black

$288.00 - $616.50
$288.00
$256.00
$256.00 - $548.00
$256.00

Texcel
TEX-STEAM Series | Steam Hose
Specifications for Variant SKU: STEAM-.50-50N Texcel | 50 |
Series: TEX-STEAM Series
Hose Color(s): Black
Internal Diameter: 0.50in
Outer Diameter: 0.94in
Tubing Construction: EPDM
Cover Construction: EPDM
Technical Data:
Description: Rugged, wire-braid steam hose recommended for saturated and super-heated steam applications in chemical plants, shipyards and industrial plants. Tube: Black or red heat-resistant EPDM
Cover: Black, EPDM (pinpricked)
Red, EPDM (pinpricked) *Red available in .75 x 50 only		 Reinforcement: High tensile steel wires
Safety Factor: 10:1 Temperature: -40°F to 410°F for saturated steam
-40°F to 450°F for superheated
Branding: TEXCEL TEX-STEAM WIRE BRAID STEAM HOSE – 250PSI AT 450F/SATURATED STEAM 410F – DO NOT ALTERNATE STEAM AND WATER – DRAIN AFTER USE (embossed) Safety Note: Drain the hose after each use for maximum hose life
Do not alternate use between steam and water
Texcel recommends using Dixon Valve and Coupling’s Crimp Boss™ Steam Fittings for black cover Tex-Steam hose or Boss™ 4-Bolt Clamp System for black and red Tex-STEAM hose. Please consult Dixon for proper coupling procedures.
Part Number Hose ID Hose OD Working Pressure (psi) Bend Radius Lbs./Ft
STEAM-.50 1/2" 60/64" 250 3" 0.37 lbs
STEAM-.75 3/4" 1-16/64" 250 4" 0.57 lbs
STEAM-.75-50N-R 3/4" 1-16/64" 250 4" 0.57 lbs
STEAM-1.0 1" 1-32/64" 250 6" 0.70 lbs
STEAM-1.5 1-1/2" 2-4/64" 250 8" 1.10 lbs
STEAM-2.0-50N 2" 2-44/64" 250 10" 1.50 lbs
STEAM-2.5-100N 2-1/2" 3-14/64" 250 11" 2.29 lbs
STEAM-3.0-100N 3" 3-50/64" 250 13-1/2" 2.85 lbs
