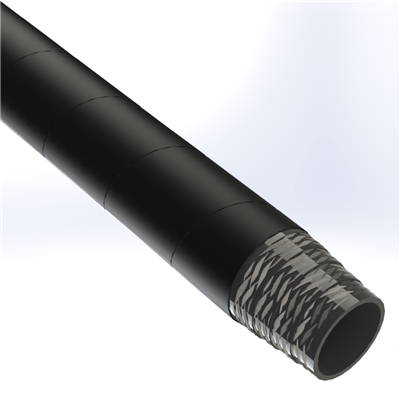

STEAM-2.5-100N by Texcel | TEX-STEAM Series | Wire Braid Steam Hose | 2-1/2" Hose ID | 250 PSI | Black | 100ft Length

Save $941.10

$3,293.86

$3,293.86 - $3,293.86

$3,293.86

$2,352.76

$2,352.76 - $2,352.76

$2,352.76

Texcel
TEX-STEAM Series | Steam Hose

Package Quantity: 100 Units

Specifications for Variant SKU: STEAM-2.5-100N Texcel \| 100 \|
Series:	TEX-STEAM Series
Hose Color(s):	Black
Internal Diameter:	2.50in
Outer Diameter:	3.22in
Tubing Construction:	EPDM
Cover Construction:	EPDM

Technical Data:
Description:	Rugged, wire-braid steam hose recommended for saturated and super-heated steam applications in chemical plants, shipyards and industrial plants.	Tube:	Black or red heat-resistant EPDM
Cover:	Black, EPDM (pinpricked) Red, EPDM (pinpricked) *Red available in .75 x 50 only	Reinforcement:	High tensile steel wires
Safety Factor:	10:1	Temperature:	-40°F to 410°F for saturated steam -40°F to 450°F for superheated
Branding:	TEXCEL TEX-STEAM WIRE BRAID STEAM HOSE – 250PSI AT 450F/SATURATED STEAM 410F – DO NOT ALTERNATE STEAM AND WATER – DRAIN AFTER USE (embossed)	Safety Note:	Drain the hose after each use for maximum hose life Do not alternate use between steam and water Texcel recommends using Dixon Valve and Coupling’s Crimp Boss™ Steam Fittings for black cover Tex-Steam hose or Boss™ 4-Bolt Clamp System for black and red Tex-STEAM hose. Please consult Dixon for proper coupling procedures.

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Bend Radius	Lbs./Ft
STEAM-.50-100N	1/2"	60/64"	250	3"	0.37 lbs
STEAM-.75-100N	3/4"	1-16/64"	250	4"	0.57 lbs
STEAM-.75-50N-R	3/4"	1-16/64"	250	4"	0.57 lbs
STEAM-1.0-100N	1"	1-32/64"	250	6"	0.70 lbs
STEAM-1.5-100N	1-1/2"	2-4/64"	250	8"	1.10 lbs
STEAM-2.0-50N	2"	2-44/64"	250	10"	1.50 lbs
STEAM-2.5-100N	2-1/2"	3-14/64"	250	11"	2.29 lbs
STEAM-3.0-100N	3"	3-50/64"	250	13-1/2"	2.85 lbs
