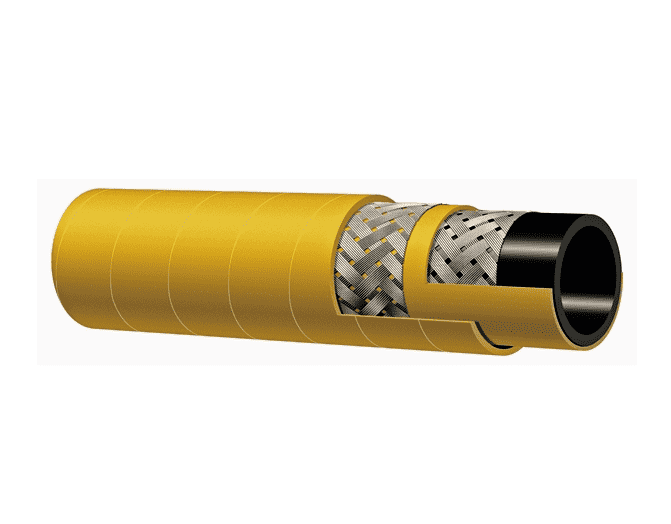

T142AK200X50 Kuriyama Alfagomma High Temperature - Oil Resistant Steel Braided Reinforced Air Hose - Yellow - 2" ID - 2.52" OD - 600 PSI - 50ft

T142AK200X50 Alfagomma by Kuriyama | High Temperature | Oil Resistant Braided Air Hose | Yellow | 2" ID | 2.52" OD | 600 PSI | 50ft Length | Reinforced Steel

Save $297.43 Save $297.43
$1,041.00
$1,041.00 - $1,041.00
$1,041.00
$743.57
$743.57 - $743.57
$743.57



Kuriyama Alfagomma® T142AK Series 600 PSI High Temperature Oil Resistant Steel Braided Reinforced Air Hose - Yellow

Package Quantity: 50 FT

Specifications for Variant SKU: T142AK200X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T142AK Series
Hose Color(s): Yellow
Internal Diameter: 2 in
Outer Diameter: 2.52in
Tubing Construction: Nitrile
Cover Construction: SBR/Nitrile Blend
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: High pressure air for mines and quarries. Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required. SAE Rating: N/A
Other Ratings: N/A Tube: Black Extruded NBR (RMA Class A) - oil mist resistant.
Reinforcement: High tensile steel wire braids. Cover: Yellow SBR/NBR - abrasion, ozone, hydrocarbon and flame resistant - pin pricked.
Temperature Range: -40 deg. F (-40 deg. C) to 242 deg. F (+120 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T142 HIGH TEMP STEEL AIR - OIL RESISTANT (embossed)
  • Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
T142AK200X100 2" 51mm 2.52" 64mm 600 PSI 10" 100ft 1.53 lbs
T142AK200X50 2" 51mm 2.52" 64mm 600 PSI 10" 50ft 1.53 lbs
T142AK250X100 2-1/2" 63mm 3.03" 77mm 450 PSI 12-1/2" 100ft 1.93 lbs
T142AK300X100 3" 76mm 3.54" 90mm 450 PSI 15" 100ft 2.38 lbs
T142AK300X50 3" 76mm 3.54" 90mm 450 PSI 15" 50ft 2.38 lbs
