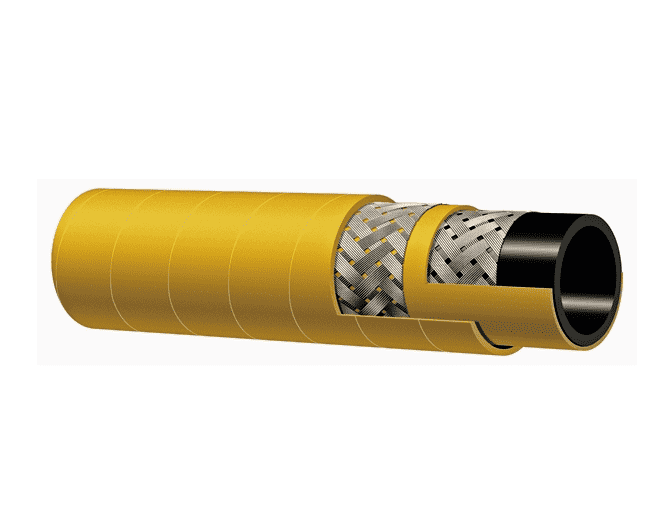

T142AK300X100 Kuriyama Alfagomma High Temperature - Oil Resistant Steel Braided Reinforced Air Hose - Yellow - 3" ID - 3.54" OD - 450 PSI - 100ft

T142AK300X100 Alfagomma by Kuriyama | High Temperature | Oil Resistant Braided Air Hose | Yellow | 3" ID | 3.54" OD | 450 PSI | Reinforced Steel | 100ft Length

Save $244.24 Save $244.24
$2,437.03
$2,437.03 - $2,437.03
$2,437.03
$2,192.79
$2,192.79 - $2,192.79
$2,192.79



Kuriyama Alfagomma® T142AK Series 600 PSI High Temperature Oil Resistant Steel Braided Reinforced Air Hose - Yellow

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: T142AK300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T142AK Series
Hose Color(s): Yellow
Internal Diameter: 3 in
Outer Diameter: 3.54in
Tubing Construction: Nitrile
Cover Construction: SBR/Nitrile Blend
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: High pressure air for mines and quarries. Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required. SAE Rating: N/A
Other Ratings: N/A Tube: Black Extruded NBR (RMA Class A) - oil mist resistant.
Reinforcement: High tensile steel wire braids. Cover: Yellow SBR/NBR - abrasion, ozone, hydrocarbon and flame resistant - pin pricked.
Temperature Range: -40 deg. F (-40 deg. C) to 242 deg. F (+120 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T142 HIGH TEMP STEEL AIR - OIL RESISTANT (embossed)
  • Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
T142AK200X100 2" 51mm 2.52" 64mm 600 PSI 10" 100ft 1.53 lbs
T142AK200X50 2" 51mm 2.52" 64mm 600 PSI 10" 50ft 1.53 lbs
T142AK250X100 2-1/2" 63mm 3.03" 77mm 450 PSI 12-1/2" 100ft 1.93 lbs
T142AK300X100 3" 76mm 3.54" 90mm 450 PSI 15" 100ft 2.38 lbs
T142AK300X50 3" 76mm 3.54" 90mm 450 PSI 15" 50ft 2.38 lbs
