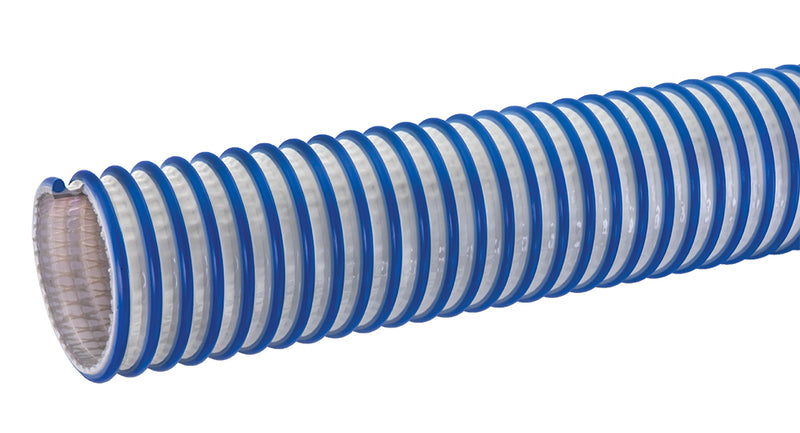

TAQ200X100 Tigerflex by Kuriyama | Tiger™ Aqua TAQ™ Series | Potable Water Suction and Discharge Hose | Opaque/Blue | 2" ID | 100ft

Save $434.88

$1,522.08

$1,522.08 - $1,522.08

$1,522.08

$1,087.20

$1,087.20 - $1,087.20

$1,087.20

Kuriyama of America Inc
Tigerflex Tiger™ Aqua TAQ™ Series Potable Water Suction and Discharge Hose

Specifications for Variant SKU: TAQ200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	TAQ Series
Hose Color(s):	Blue & Clear/Semi-Clear
Internal Diameter:	2in
Outer Diameter:	2.6in
Tubing Construction:	PVC
Cover Construction:	PVC
Special Properties:	Outer Helix Protection

Other Features:
Application:	Transfer of potable water in residential, oilfield, airport and marine (ship) applications Ice transfer Food grade liquids such as beer, wine, and juice	Cover:	Rigid PVC Helix
Reinforcement:	Polyester Fabric	Tube:	Double-ply PVC
Temperature Range:	-40°F to +150°F (-40°C to +65°C)	Specifications	BSE/TSE(02), FDA(03), FDA(05), Phthalate Free(10), RoHS(11)
NSF Listed Liner - Hose liner material certified under NSF/ANSI/CAN 61 for use in potable water applications. Please refer to NOTE below for official NSF listing. The hose itself is not certified with NSF. Food Grade Materials - Hose complies with applicable FDA(03) requirements. "Cold Flex" Materials - Hose remains flexible in sub-zero temperatures. Opaque Construction - Solid white cover reduces appearance of staining from conveyed materials, blocks out UV, reducing instances of algae growth. Fabric Reinforcement - Designed with a high tensile strength, food grade(05), polyester yarn jacket to handle suction and pressure applications. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Phthalate Free. NOTE: Service life may vary depending on operating conditions and type of material being conveyed.

Part Number	ID		OD		Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)	(Lbs/Ft)
TAQ150X100	1-1/2"	38.1mm	1.95"	49.5mm	110 PSI	70 PSI	FULL	28 in. Hg	2.5"	100ft	0.42 lbs
TAQ200X100	2"	50.8mm	2.60"	66.0mm	100 PSI	65 PSI	FULL	28 in. Hg	4"	100ft	0.74 lbs
TAQ300X100	3"	76.2mm	3.62"	92.0mm	100 PSI	50 PSI	FULL	28 in. Hg	6"	100ft	1.13 lbs
TAQ400X100	4"	101.6mm	4.76"	121.0mm	75 PSI	37 PSI	FULL	28 in. Hg	8"	100ft	1.74 lbs
TAQ600X100	6"	152.4mm	7.17"	182.1mm	70 PSI	35 PSI	28 in. Hg	25 in. Hg	13"	100ft	3.88 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
