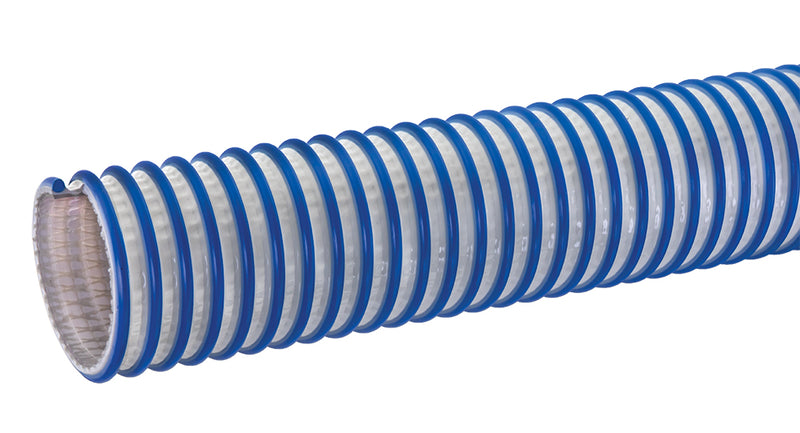

TAQ400X100 Tigerflex by Kuriyama | Tiger™ Aqua TAQ™ Series | Potable Water Suction and Discharge Hose | Opaque/Blue | 4" ID | 100ft

TAQ400X100 Tigerflex by Kuriyama | Tiger™ Aqua TAQ™ Series | Potable Water Suction and Discharge Hose | Opaque/Blue | 4" ID | 100ft

Save $690.00 Save $690.00
$2,415.00
$2,415.00 - $2,415.00
$2,415.00
$1,725.00
$1,725.00 - $1,725.00
$1,725.00

Kuriyama of America Inc
Tigerflex Tiger™ Aqua TAQ™ Series Potable Water Suction and Discharge Hose
Specifications for Variant SKU: TAQ400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: TAQ Series
Hose Color(s): Blue & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.76in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Outer Helix Protection
Application:
  • Transfer of potable water in residential, oilfield, airport and marine (ship) applications
  • Ice transfer
  • Food grade liquids such as beer, wine, and juice
 Cover: Rigid PVC Helix
Reinforcement: Polyester Fabric Tube: Double-ply PVC
Temperature Range: -40°F to +150°F (-40°C to +65°C) Specifications BSE/TSE(02), FDA(03), FDA(05), Phthalate Free(10), RoHS(11)
Other Features:
  • NSF Listed Liner - Hose liner material certified under NSF/ANSI/CAN 61 for use in potable water applications. Please refer to NOTE below for official NSF listing. The hose itself is not certified with NSF.
  • Food Grade Materials - Hose complies with applicable FDA(03) requirements.
  • "Cold Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Opaque Construction - Solid white cover reduces appearance of staining from conveyed materials, blocks out UV, reducing instances of algae growth.
  • Fabric Reinforcement - Designed with a high tensile strength, food grade(05), polyester yarn jacket to handle suction and pressure applications.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Phthalate Free.
  • NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number ID OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Min. Bending Radius Standard Length Weight
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.) (Lbs/Ft)
TAQ150X100 1-1/2" 38.1mm 1.95" 49.5mm 110 PSI 70 PSI FULL 28 in. Hg 2.5" 100ft 0.42 lbs
TAQ200X100 2" 50.8mm 2.60" 66.0mm 100 PSI 65 PSI FULL 28 in. Hg 4" 100ft 0.74 lbs
TAQ300X100 3" 76.2mm 3.62" 92.0mm 100 PSI 50 PSI FULL 28 in. Hg 6" 100ft 1.13 lbs
TAQ400X100 4" 101.6mm 4.76" 121.0mm 75 PSI 37 PSI FULL 28 in. Hg 8" 100ft 1.74 lbs
TAQ600X100 6" 152.4mm 7.17" 182.1mm 70 PSI 35 PSI 28 in. Hg 25 in. Hg 13" 100ft 3.88 lbs
