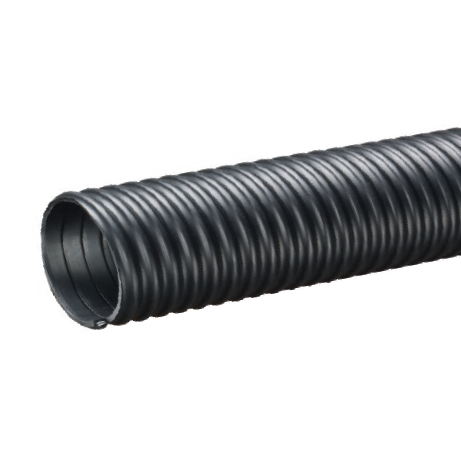

TR1-200X100 Kuriyama Tigerflex TR1 Series Heavy Duty SBR Wet or Dry Material Handling Hose - 2" - 100ft

TR1-200X100 Tigerflex by Kuriyama | TR1 Series | Heavy Duty Wet or Dry Material Handling Hose | 2" ID | SBR | 100ft Length

Save $70.23 Save $70.23
$715.56
$715.56 - $715.56
$715.56
$645.33
$645.33 - $645.33
$645.33

Kuriyama Tigerflex TR1™ Series Heavy Duty SBR Wet or Dry Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: TR1-200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: TR1 Series
Hose Color(s): Black
Internal Diameter: 2in
Outer Diameter: 2.38in
Tubing Construction: SBR
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Tube, Outer Helix Protection

SPECIFICATIONS

Application: Fly ash collection, Hydro excavation, Industrial vacuum equipment, Material handling - heavy duty abrasive, Milling machine scrap recovery, Rock, gravel, sand and crushed concrete vacuuming, Sewer truck boom hose, Shot blast recovery, Slurry handling SAE Rating: N/A
Other Ratings: N/A Tube: SBR Rubber
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Superior Rubber Compounds - Tigerflex™ uses specially engineered compounds which provide the ideal combination of excellent abrasion resistance, light weight, flexibility, static dissipation and superior long-lasting durability.
  • Static Dissipative Tube - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
TR1-150X100 1-1/2" 38.1mm TBD TBD TBD TBD TBD TBD TBD 100ft TBD
TR1-200X100 2" 50.8mm 2.38" 60.5mm 32 PSI 23 PSI Full 26 in. Hg 1.5" 100ft 0.50 lbs
TR1-200X50 2" 50.8mm 2.38" 60.5mm 32 PSI 23 PSI Full 26 in. Hg 1.5" 100ft 0.50 lbs
TR1-250X100 2-1/2" 63.4mm 3.05" 77.5mm 30 PSI 22 PSI Full 26 in. Hg 2.0" 100ft 0.84 lbs
TR1-250X50 2-1/2" 63.4mm 3.05" 77.5mm 30 PSI 22 PSI Full 26 in. Hg 2.0" 50ft 0.84 lbs
TR1-300X100 3" 76.2mm 3.56" 90.5mm 28 PSI 20 PSI Full 26 in. Hg 2.5" 100ft 1.00 lbs
TR1-300X50 3" 76.2mm 3.56" 90.5mm 28 PSI 20 PSI Full 26 in. Hg 2.5" 50ft 1.00 lbs
TR1-400X100 4" 101.6mm 4.67" 118.5mm 26 PSI 18 PSI Full 26 in. Hg 4.5" 100ft 1.70 lbs
TR1-400X50 4" 101.6mm 4.67" 118.5mm 26 PSI 18 PSI Full 26 in. Hg 4.5" 50ft 1.70 lbs
TR1-500X100 5" 126.8mm 5.73" 145.5mm 21 PSI 16 PSI 28 in. Hg 24 in. Hg 5.0" 100ft 2.38 lbs
TR1-500X50 5" 126.8mm 5.73" 145.5mm 21 PSI 16 PSI 28 in. Hg 24 in. Hg 5.0" 50ft 2.38 lbs
TR1-600X100 6" 153.4mm 6.88" 174.8mm 19 PSI 13 PSI 28 in. Hg 24 in. Hg 9.5" 100ft 3.20 lbs
TR1-600X50 6" 153.4mm 6.88" 174.8mm 19 PSI 13 PSI 28 in. Hg 24 in. Hg 9.5" 50ft 3.20 lbs
TR1-600X20 6" 153.4mm 6.88" 174.8mm 19 PSI 13 PSI 28 in. Hg 24 in. Hg 9.5" 20ft 3.20 lbs
TR1-800X50 8" 204.8mm 9.18" 233.2mm 19 PSI 13 PSI 27 in. Hg 23 in. Hg 14" 50ft 5.70 lbs
TR1-800X20 8" 204.8mm 9.18" 233.2mm 19 PSI 13 PSI 27 in. Hg 23 in. Hg 14" 20ft 5.70 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. Available with grounding wire upon request. Minimum order required, contact customer service for details.
