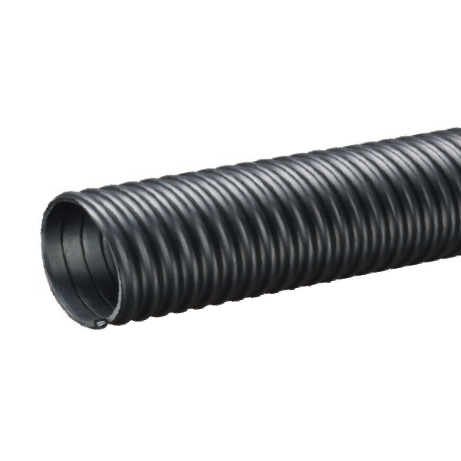

TR1-500X100 Kuriyama Tigerflex TR1 Series Heavy Duty SBR Wet or Dry Material Handling Hose - 5" - 100ft

TR1-500X100 Tigerflex by Kuriyama | TR1 Series | Heavy Duty Wet or Dry Material Handling Hose | 5" ID | SBR | 100ft Length

Save $309.78

$3,097.78

$3,097.78 - $3,097.78

$3,097.78

$2,788.00

$2,788.00 - $2,788.00

$2,788.00

Kuriyama Tigerflex TR1™ Series Heavy Duty SBR Wet or Dry Material Handling Hose

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: TR1-500X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	TR1 Series
Hose Color(s):	Black
Internal Diameter:	5in
Outer Diameter:	5.73in
Tubing Construction:	SBR
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Conductive Tube, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Fly ash collection, Hydro excavation, Industrial vacuum equipment, Material handling - heavy duty abrasive, Milling machine scrap recovery, Rock, gravel, sand and crushed concrete vacuuming, Sewer truck boom hose, Shot blast recovery, Slurry handling	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR Rubber
Reinforcement:	Rigid PVC Helix.	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Superior Rubber Compounds - Tigerflex™ uses specially engineered compounds which provide the ideal combination of excellent abrasion resistance, light weight, flexibility, static dissipation and superior long-lasting durability. Static Dissipative Tube - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Convoluted Outer Cover - Provides increased hose flexibility.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
TR1-150X100	1-1/2"	38.1mm	TBD	TBD	TBD	TBD	TBD	TBD	TBD	100ft	TBD
TR1-200X100	2"	50.8mm	2.38"	60.5mm	32 PSI	23 PSI	Full	26 in. Hg	1.5"	100ft	0.50 lbs
TR1-200X50	2"	50.8mm	2.38"	60.5mm	32 PSI	23 PSI	Full	26 in. Hg	1.5"	100ft	0.50 lbs
TR1-250X100	2-1/2"	63.4mm	3.05"	77.5mm	30 PSI	22 PSI	Full	26 in. Hg	2.0"	100ft	0.84 lbs
TR1-250X50	2-1/2"	63.4mm	3.05"	77.5mm	30 PSI	22 PSI	Full	26 in. Hg	2.0"	50ft	0.84 lbs
TR1-300X100	3"	76.2mm	3.56"	90.5mm	28 PSI	20 PSI	Full	26 in. Hg	2.5"	100ft	1.00 lbs
TR1-300X50	3"	76.2mm	3.56"	90.5mm	28 PSI	20 PSI	Full	26 in. Hg	2.5"	50ft	1.00 lbs
TR1-400X100	4"	101.6mm	4.67"	118.5mm	26 PSI	18 PSI	Full	26 in. Hg	4.5"	100ft	1.70 lbs
TR1-400X50	4"	101.6mm	4.67"	118.5mm	26 PSI	18 PSI	Full	26 in. Hg	4.5"	50ft	1.70 lbs
TR1-500X100	5"	126.8mm	5.73"	145.5mm	21 PSI	16 PSI	28 in. Hg	24 in. Hg	5.0"	100ft	2.38 lbs
TR1-500X50	5"	126.8mm	5.73"	145.5mm	21 PSI	16 PSI	28 in. Hg	24 in. Hg	5.0"	50ft	2.38 lbs
TR1-600X100	6"	153.4mm	6.88"	174.8mm	19 PSI	13 PSI	28 in. Hg	24 in. Hg	9.5"	100ft	3.20 lbs
TR1-600X50	6"	153.4mm	6.88"	174.8mm	19 PSI	13 PSI	28 in. Hg	24 in. Hg	9.5"	50ft	3.20 lbs
TR1-600X20	6"	153.4mm	6.88"	174.8mm	19 PSI	13 PSI	28 in. Hg	24 in. Hg	9.5"	20ft	3.20 lbs
TR1-800X50	8"	204.8mm	9.18"	233.2mm	19 PSI	13 PSI	27 in. Hg	23 in. Hg	14"	50ft	5.70 lbs
TR1-800X20	8"	204.8mm	9.18"	233.2mm	19 PSI	13 PSI	27 in. Hg	23 in. Hg	14"	20ft	5.70 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. Available with grounding wire upon request. Minimum order required, contact customer service for details.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
