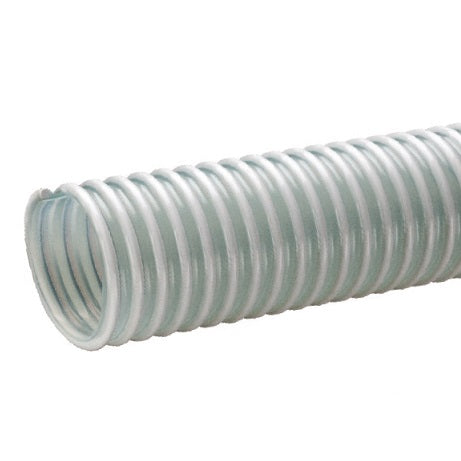

UFC200X100 Kuriyama Tigerflex UFC Series Ureflex Heavy Duty Polyurethane Lined Material Handling Hose - 2" - 100ft

UFC200X100 Tigerflex by Kuriyama | UFC Series | Ureflex Heavy Duty Lined Material Handling Hose | 2" ID | Polyurethane | 100ft Length

Save $282.96

$990.36

$990.36 - $990.36

$990.36

$707.40

$707.40 - $707.40

$707.40

Kuriyama Tigerflex UFC™ Series Ureflex Heavy Duty Polyurethane Lined Material Handling Hose

Package Quantity: 100 FT

Specifications for Variant SKU: UFC200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	UFC Series
Hose Color(s):	White/Off-White
Internal Diameter:	2in
Outer Diameter:	2.40in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Agricultural dry fertilizers, Air seeder lines, Industrial vacuum equipment, Plastic processing equipment, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	PVC
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Convoluted Outer Cover - Provides increased hose flexibility. Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UFC150X100	1-1/2"	38.1mm	1.85"	47.0mm	50 PSI	25 PSI	Full	28 in. Hg	2"	100ft	0.42 lbs
UFC200X100	2"	50.8mm	2.40"	61.0mm	40 PSI	20 PSI	Full	28 in. Hg	3"	100ft	0.59 lbs
UFC250X100	2-1/2"	63.5mm	3.07"	78.0mm	40 PSI	20 PSI	Full	28 in. Hg	3"	100ft	0.80 lbs
UFC300X100	3"	76.2mm	3.64"	92.5mm	40 PSI	20 PSI	Full	28 in. Hg	4"	100ft	1.18 lbs
UFC400X100	4"	101.6mm	4.76"	120.9mm	35 PSI	18 PSI	Full	28 in. Hg	6"	100ft	1.95 lbs
UFC57MX100*	2.24"	57.0mm	2.60"	66.0mm	40 PSI	20 PSI	Full	28 in. Hg	3"	100ft	0.62 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent. *Non-stock item, minimum order required. Contact customer service for details.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
