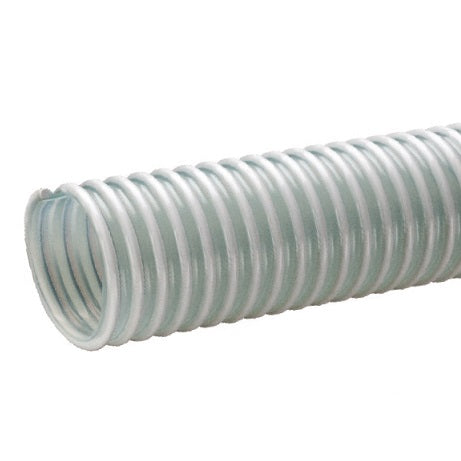

UFC400X100 Kuriyama Tigerflex UFC Series Ureflex Heavy Duty Polyurethane Lined Material Handling Hose - 4" - 100ft

UFC400X100 Tigerflex by Kuriyama | UFC Series | Ureflex Heavy Duty Lined Material Handling Hose | 4" ID | Polyurethane | 100ft Length

Save $783.60 Save $783.60
$2,742.60
$2,742.60 - $2,742.60
$2,742.60
$1,959.00
$1,959.00 - $1,959.00
$1,959.00

Kuriyama Tigerflex UFC™ Series Ureflex Heavy Duty Polyurethane Lined Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: UFC400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: UFC Series
Hose Color(s): White/Off-White
Internal Diameter: 4in
Outer Diameter: 4.76in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Application: Agricultural dry fertilizers, Air seeder lines, Industrial vacuum equipment, Plastic processing equipment, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UFC150X100 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2" 100ft 0.42 lbs
UFC200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 100ft 0.59 lbs
UFC250X100 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 100ft 0.80 lbs
UFC300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4" 100ft 1.18 lbs
UFC400X100 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6" 100ft 1.95 lbs
UFC57MX100* 2.24" 57.0mm 2.60" 66.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 100ft 0.62 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent. *Non-stock item, minimum order required. Contact customer service for details.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
