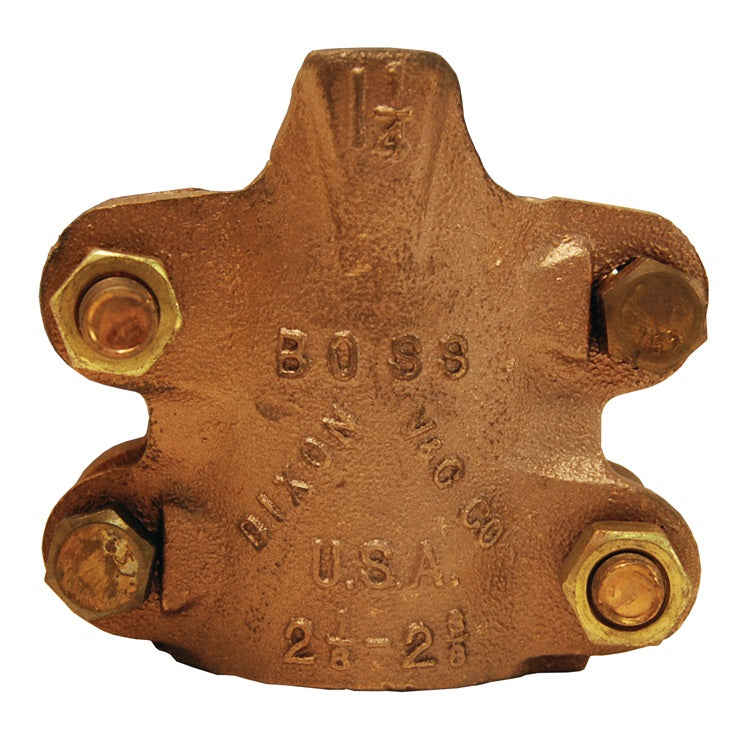

BBU29 by Dixon Valve | Boss® Clamp | 4-Bolt Type | 2-Gripping Fingers | 2" Hose ID | Hose OD: from 2-32/64" to 2-50/64" | Brass

BBU29 by Dixon Valve | Boss® Clamp | 4-Bolt Type | 2-Gripping Fingers | 2" Hose ID | Hose OD: from 2-32/64" to 2-50/64" | Brass

Save $12.99 Save $12.99
$116.89
$116.89 - $116.89
$116.89
$103.90
$103.90 - $103.90
$103.90

Dixon Valve
Boss® Clamp | 4-Bolt Type | 2-Gripping Fingers
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BBU29 Dixon
Brand: Boss
Material(s): Brass
Minimum Clamp I.D.: 2-32/64
Maximum Clamp I.D.: 2-50/64
Features:
  • 4-Bolt type clamp.
  • 2 Gripping fingers.
  • 2 Clamp sections.
Use:
  • The correct size Boss Clamp must be used.
  • Bolts in Boss Clamps are designed to bend as they are tightened. This allows the clamp to conform to the hose outside diameter.
  • Always tighten bolts to their specified torque value.
  • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses.
  • Boss Clamps are for single use only! Once removed they are to be discarded.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Instructions:
  • 4 Bolt Dixon Boss Clamp Bolt Tightening Sequence, Using a torque wrench, begin tightening the bolts as follows:
    A) Back bolt (bolt with nut facing assembler that is furthest away from gripping finger) 1 full turn.
    B) Front bolt (bolt with nut facing assembler that is closest to gripping finger) 1 full turn.
    C) Snug by hand (if bolts are loose) nuts on opposite side of bolts just torqued.
    D) Opposite side back bolt (bolt with nut facing assembler furthest away from gripping finger) 1 full turn.
    E) Opposite side front bolt (bolt with nut facing assembler closest to gripping finger) 1 full turn.
    F) Snug by hand (if bolts are loose) nuts on opposite side of bolts just torqued.
    G) Repeat above procedure "a" through "f" until all of the bolts have reached the recommended torque.
    H) Remove assembly from vise.
Safety Notes:
  • The bolts used in the Boss interlocking clamps are not standard bolts. They vary from standard bolts in their length, diameter, overall thread length and material hardness. These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only. Dixon Recommends using only factory supplied replacement bolts. Replacement nuts and bolts are available, contact Dixon for more information.
  • Torque values for clamps are based on dry bolts. The use of lubricant on bolts will adversely effect clamp performance. Do not lubricate nuts and bolts. Recommended torque rating in ft. lbs.
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Zinc Plated Iron
Part Number		 Stainless Steel****
Part Number		 Brass
Part Number		 Hose I.D. Hose O.D. Torque ft.lbs.**
from to
BU14 RBU14 BBU14 1" 1-34/64" 1-46/64" 21 ft.lbs
18 ft.lbs (for Brass)
B14 RB14 - 1" 1-44/64" 1-60/64" 21 ft.lbs
BU15 - - 1" 1-60/64" 2-8/64" 21 ft.lbs
BU18 - - 1-1/4" 1-32/64" 1-50/64" 40 ft.lbs
BU19 - - 1-1/4" 1-50/64" 2-6/64" 40 ft.lbs
B19 RB19 - 1-1/4" 2-8/64" 2-24/64" 40 ft.lbs
BU22 - - 1-1/2" 1-52/64" 2" 40 ft.lbs
B22 - - 1-1/2" 2" 2-14/64" 40 ft.lbs
BU24 RBU24 - 1-1/2" 2-12/64" 2-24/64" 40 ft.lbs
B24 RB24 - 1-1/2" 2-24/64" 2-36/64" 40 ft.lbs
B25 - - 1-1/2" 2-36/64" 2-48/64" 40 ft.lbs
BU28 - - 2" 2-22/64" 2-34/64" 60 ft.lbs
BU29 RBU29 BBU29* 2" 2-32/64" 2-50/64" 60 ft.lbs
40 ft.lbs (for Brass)
B29 RB29 - 2" 2-48/64" 3-4/64" 60 ft.lbs
B30 - - 2" 3-6/64" 3-28/64" 60 ft.lbs
BU34 - - 2-1/2" 3-6/64" 3-28/64" 60 ft.lbs
B34 - - 2-1/2" 3-32/64" 3-60/64" 150 ft.lbs
BU35 RBU35 - 3" 3-32/64" 3-60/64" 150 ft.lbs
B35 - - 3" 3-52/64" 4-4/64" 150 ft.lbs
B39 - - 3" 4-4/64" 4-28/64" 200 ft.lbs

** Torque applies to plated iron and stainless steel clamps
*** Global investment cast carbon steel
**** When installing stainless steel bolts and nuts, the use of anti-seize or anti-galling lubricant is advised. A light coat is required on the bolt threads to prevent thread galling and artificial torque reading.
